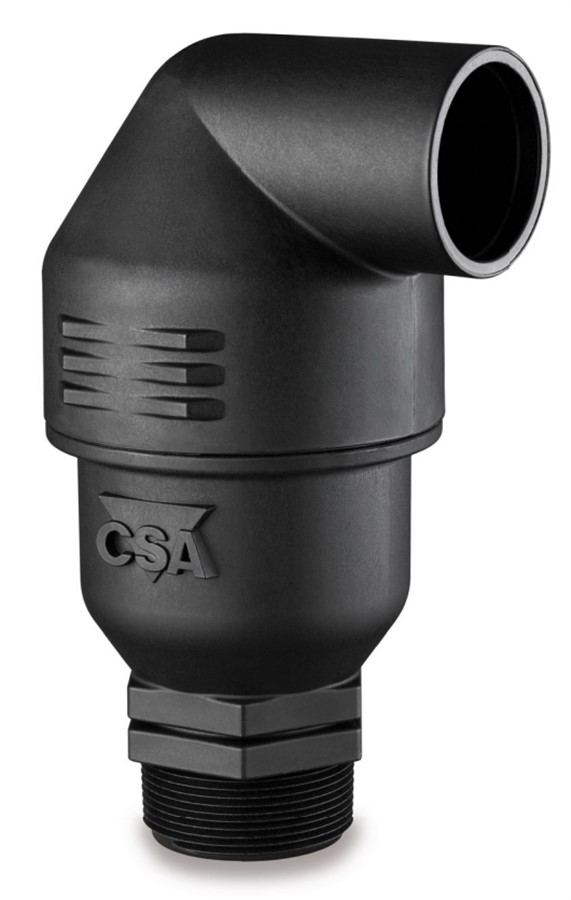

AVK AIR RELIEF VALVE, ANTI-SURGE, PN16
ARGO 3F AS, Full Bore for Clean & Treated Water, EPDM, Glass Reinforced PP
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Air relief valve for clean water and neutral liquids to max. 60°C
AVK Anti Surge double orifice combination air valves allows air to enter the pipeline freely on separation, but control the expulsion as the column rejoins. This creates an air buffer that effectively reduces the impact velocity and the surge potential of the system. The second orifice automatically discharges accumlated air during normal working condtions.
| Variant 861/80-002 | |
|---|---|
| Material: | PP |
| PN: | PN16 |
Features
- Single chamber body in glass reinforced polypropylene, PN16 rated
- Internal ribs for accurate guiding of the float
- The aerodynamic full bore body prevents premature closures of the mobile block also at high velosity air intake and discharge.
- Compact and reliable construction made from parts that are fully corrosion and chemical resistant.
- Low maintenance
- Easy maintenance can be performed from the top without removing the air valve from the pipe system
- Working conditions 0,2 - 16 bar differential pressure.
Downloads
Datasheet
Related Datasheets

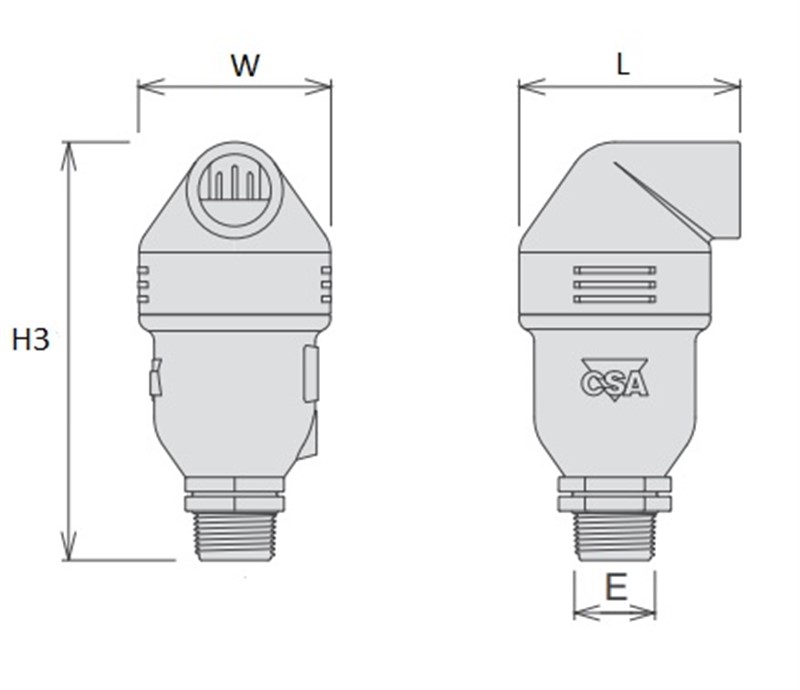

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | BSPT thread Inch |
W mm |
L mm |
H3 mm |
Theoretical weight/kg |
|---|---|---|---|---|---|
| 861-0025-80-0900001 | 1" | 80 | 92 | 167 | 0.3 |
| 861-0050-80-0900001 | 2" | 110 | 135 | 226 | 0.8 |
Enquiry
Scroll for more info

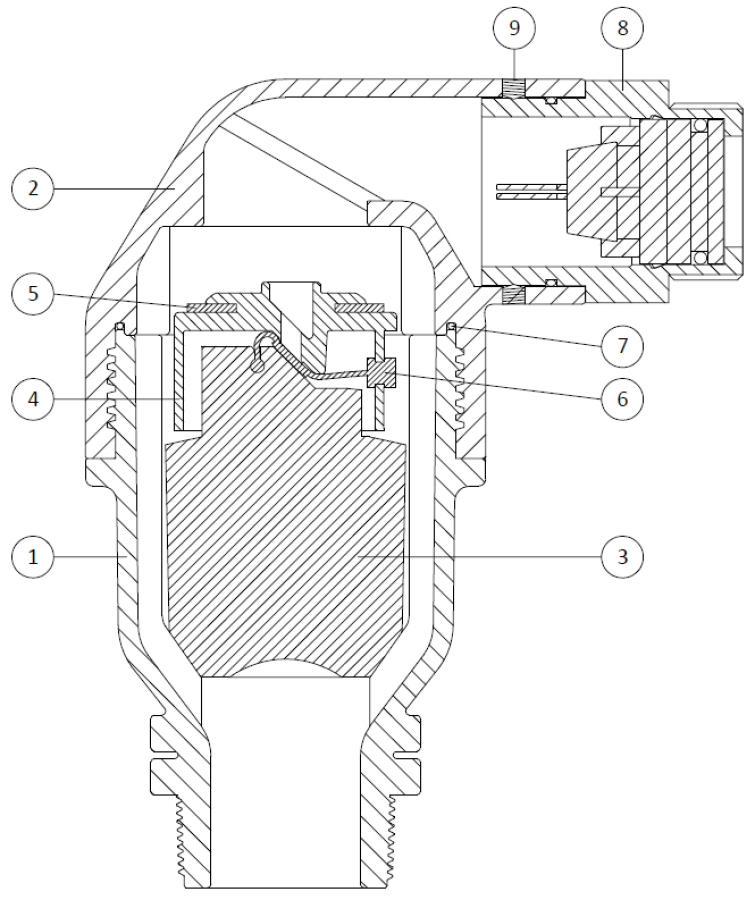

Components
| 1. | Body | PP, reinforced |
| 2. | Cap | PP, reinforced |
| 3. | Float | Polypropylene |
| 4. | Plug for airvalve | PA, reinforced |
| 5. | Orifice seal | EPDM rubber |
| 6. | Orifice seal | EPDM rubber |
| 7. | O-ring | EPDM rubber |
| 8. | Polypropylene | |
| 9. | Screw | Stainless steel 316 |
Standards
- Designed according to EN 1074 - 4
