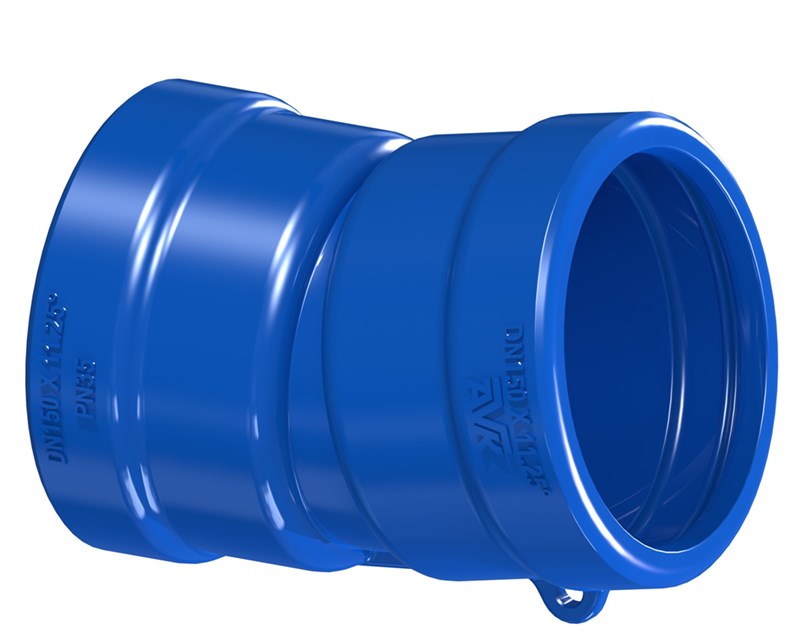

AVK DUCTILE IRON FITTING, BEND, 11.25° SOCKET
PN35, DN100-DN750
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Ductile iron fitting, for water and other neutral liquids to max. 70°C
AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS4158.
| Variant 718/0140-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN100 - DN750 |
| PN: | PN35 |
Features
- For pipeline construction in both above and below ground water applications
- High strength and impact resistance
- Ductile iron fitting to AS/NZS 2280
- Body of min. GJS-400-15 (GGG-40)
- Thermoset polymeric coated to AS/NZS 4158
- Lifting eye for easy handling by lifting equipment
- Series 1 or Series 2 gaskets available
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance
Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
L mm |
R |
Theoretical weight / kg |
|---|---|---|---|---|
| 718-0100-01-40912 | 100 | 20 | 75 | 7 |
| 718-0150-01-40912 | 150 | 20 | 120 | 13 |
| 718-0200-01-40912 | 200 | 35 | 203 | 26 |
| 718-0225-01-40912 | 225 | 45 | 229 | 30 |
| 718-0250-01-40912 | 250 | 45 | 254 | 36 |
| 718-0300-01-40912 | 300 | 50 | 305 | 50 |
| 718-0375-01-40912 | 375 | 65 | 381 | 81 |
| 718-0450-01-40912 | 450 | 70 | 457 | 107 |
| 718-0500-01-40912 | 500 | 75 | 508 | 124 |
| 718-0600-01-40912 | 600 | 85 | 610 | 170 |
| 718-0782-01-40912 | 750 | 105 | 765 | 252 |
Enquiry
Scroll for more info
Components

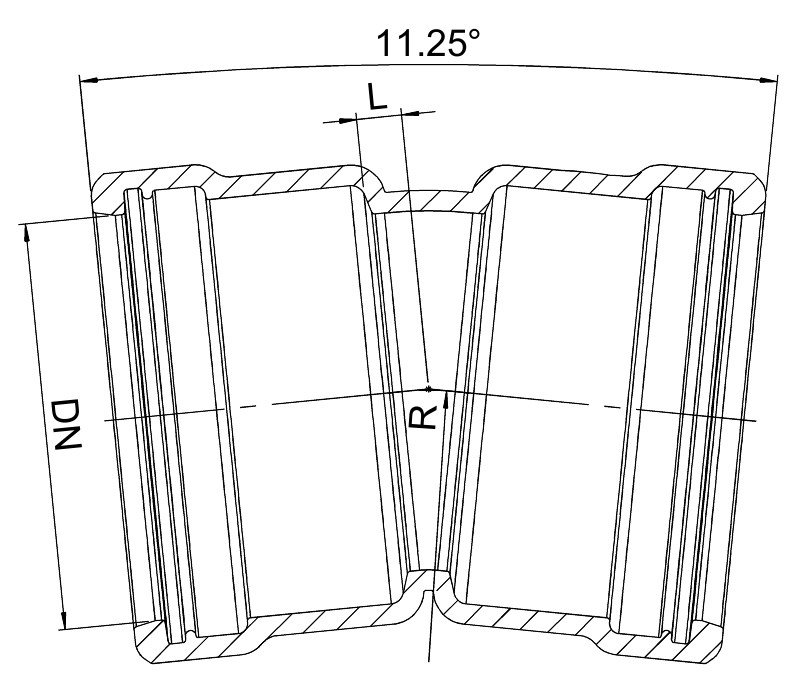

718-0140-001 d1_324038.jpg)
| 1. | Fitting | Ductile iron GJS-400-15 (GGG-40) |
Test/Approvals
- Production test according to AS/NZS 2280 sect 4.1
- StandardsMark approved to AS/NZS 2280
- WaterMark approved to AS/NZS 2280
Standards
- Designed to: AS/NZS 2280
