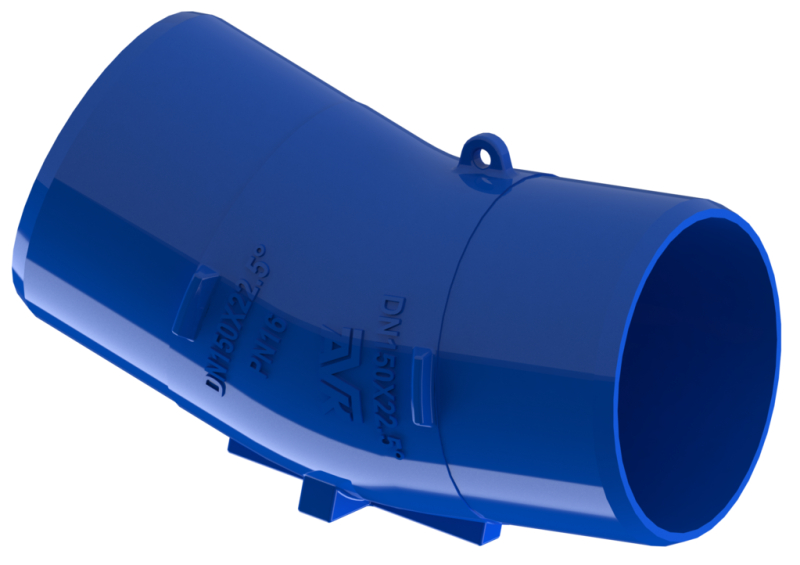

AVK DUCTILE IRON FITTING, BEND, 22.5° SPIGOT
PN16, DN100-DN150
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Ductile iron fitting, for water and other neutral liquids to max. 70°C
AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS/NZS 4158.
| Variant 718/0201-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN100 - DN150 |
| PN: | PN16 |
Features
- For pipeline construction in both above and below ground water applications
- High strength and impact resistance
- Thermoset polymeric coated to AS/NZS 4158
- Lifting eye for easy handling by lifting equipment
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance

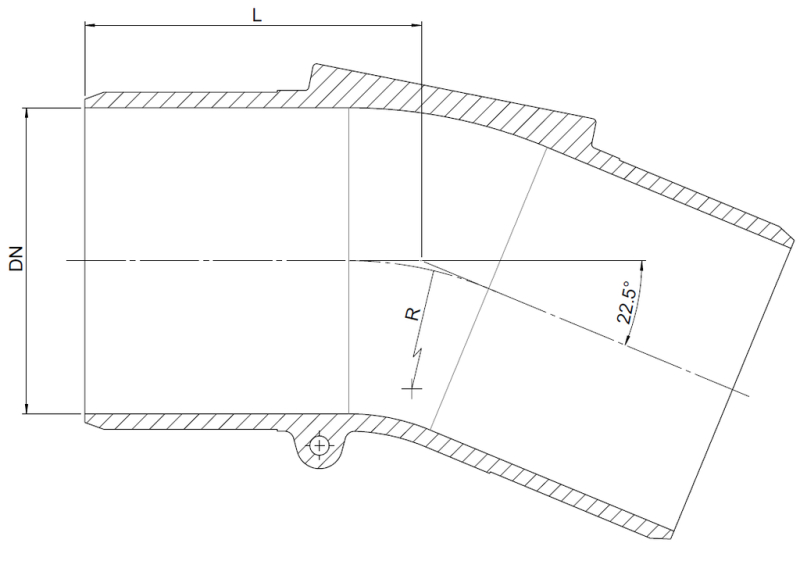

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
Product PN Class |
R |
L mm |
Theoretical weight/kg |
|---|---|---|---|---|---|
| 718-0100-02-01912 | 100 | PN16 | 152 | 152 | 12 |
| 718-0150-02-01912 | 150 | PN16 | 190 | 175 | 20 |
Enquiry
Scroll for more info
Components
| 1. | Fitting | Ductile iron GJS-400-15 (GGG-40) |
Test/Approvals
- Production test according to AS/NZS 2280 sect 4.1
- StandardsMark approved to AS/NZS 2280
- WaterMark approved to AS/NZS 2280
Standards
- Designed to: AS/NZS 2280
