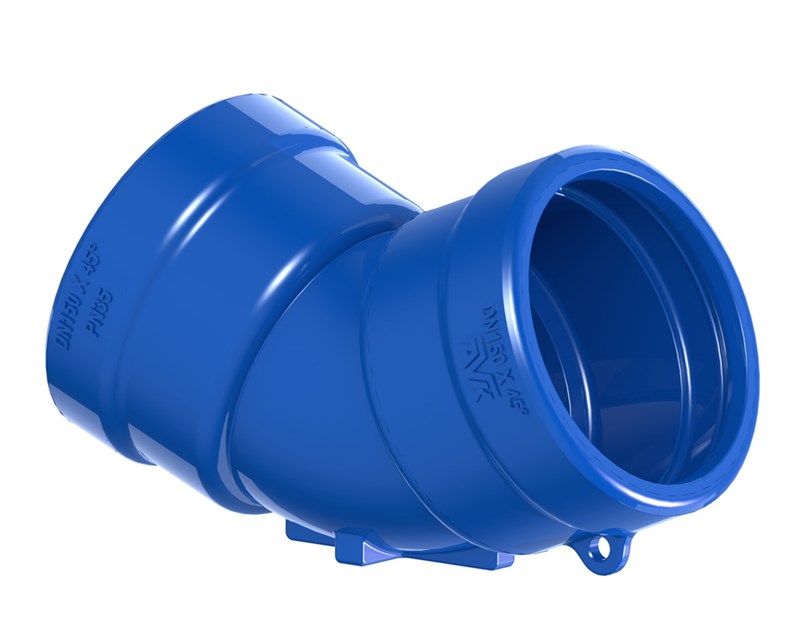

AVK DUCTILE IRON FITTING, BEND, 45° SOCKET
PN35, DN100-DN750
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Ductile iron fitting, for water and other neutral liquids to max. 70°C
AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS/NZS 4158.
| Variant 718/0440-001 | |
|---|---|
| Connection: | Socket Ends |
| Material: | Ductile Iron |
| DN: | DN100 - DN750 |
| PN: | PN35 |
Features
- For pipeline construction in both above and below ground water applications
- High strength and impact resistance
- Ductile iron fitting to AS/NZS 2280
- Body of min. GJS-400-15 (GGG-40)
- Thermoset polymeric coated to AS/NZS 4158
- Lifting eye for easy handling by lifting equipment
- Series 1 or Series 2 gaskets available
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance

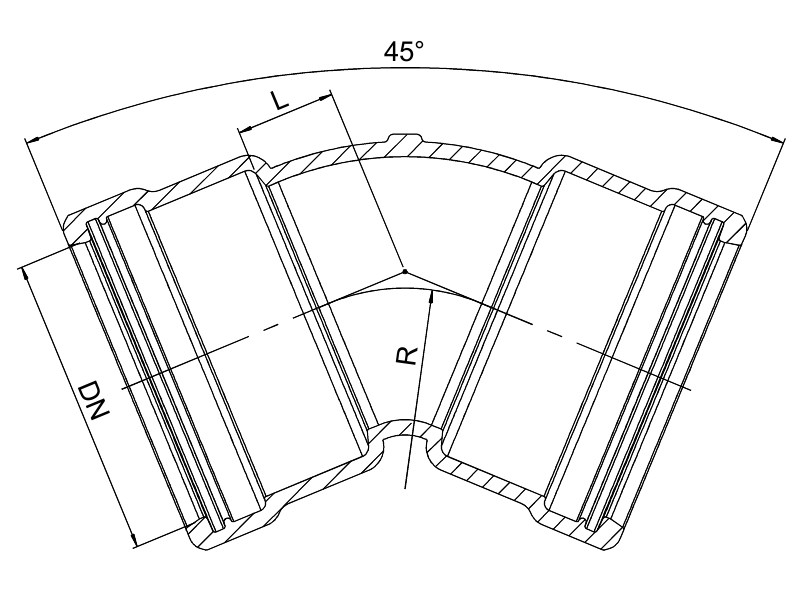

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
L mm |
R |
Product PN Class |
Theoretical weight/kg |
|---|---|---|---|---|---|
| 718-0100-04-40912 | 100 | 45 | 75 | PN35 | 8.9 |
| 718-0150-04-40912 | 150 | 60 | 120 | PN35 | 16 |
| 718-0200-04-40912 | 200 | 100 | 203 | PN35 | 33 |
| 718-0225-04-40912 | 225 | 115 | 229 | PN35 | 39 |
| 718-0250-04-40912 | 250 | 125 | 254 | PN35 | 46 |
| 718-0300-04-40912 | 300 | 145 | 305 | PN35 | 65 |
| 718-0375-04-40912 | 375 | 185 | 381 | PN35 | 108 |
| 718-0450-04-40912 | 450 | 215 | 457 | PN35 | 153 |
| 718-0500-04-40912 | 500 | 235 | 508 | PN35 | 185 |
| 718-0600-04-40912 | 600 | 280 | 610 | PN35 | 262 |
| 718-0782-04-40912 | 750 | 345 | 765 | PN35 | 446 |
Enquiry
Scroll for more info
Components
718-0440-001 d1_324041.jpg)
| 1. | Fitting | Ductile iron GJS-400-15 (GGG-40) |
Test/Approvals
- Production test according to AS/NZS 2280 sect 4.1
- StandardsMark approved to AS/NZS 2280
- WaterMark approved to AS/NZS 2280
Standards
- Designed to: AS/NZS 2280
