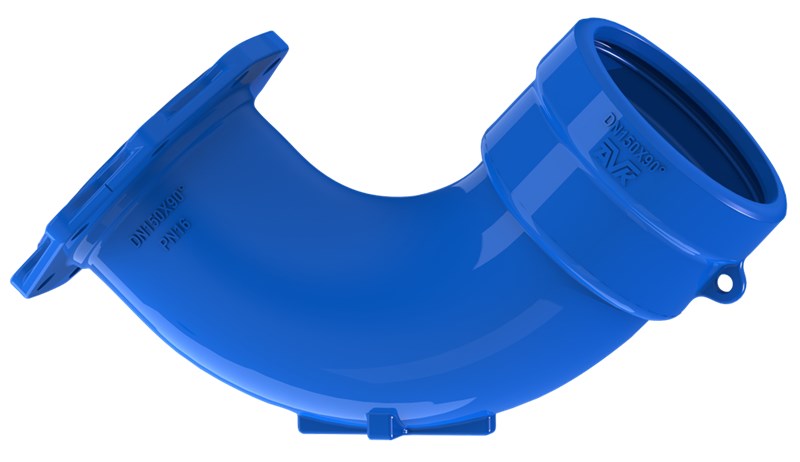

AVK DUCTILE IRON FITTING, BEND, 90° FLANGE / SOCKET
PN16, AS/NZS 4087 B5, DN80-DN375
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Flange socket bend 90° to AS/NZS 2280 for water, waste water and neutral liquids to max. 70° C
AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS/NZS 4158.
| Variant 718/0614-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN100 - DN375 |
| PN: | PN16 |
Features
- For pipeline construction in both above and below ground water applications
- High strength and impact resistance
- Ductile iron fitting to AS/NZS 2280
- Body of min. GJS-400-15 (GGG-40)
- Thermoset polymeric coated to AS/NZS 4158
- Lifting eye for easy handling by lifting equipment
- Series 1 or Series 2 gaskets available
Downloads
Datasheet
Certificate(s)
Installation, Operation & Maintenance
Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
L1 mm |
L2 mm |
Flange drilling |
Product PN Class |
Theoretical weight/kg |
|---|---|---|---|---|---|---|
| 718-0100-06-14512 | 100 | 165 | 245 | AS 4087 B5 | PN16 | 15 |
| 718-0150-06-14512 | 150 | 205 | 279 | AS4087B5 | PN16 | 20 |
| 718-0200-06-14512 | 200 | 220 | 305 | AS4087B5 | PN16 | 30 |
| 718-0225-06-14512 | 225 | 250 | 330 | AS 4087 B5 | PN16 | 55 |
| 718-0250-06-14512 | 250 | 275 | 356 | AS 4087 B5 | PN16 | 70 |
| 718-0300-06-14512 | 300 | 325 | 406 | AS4087B5 | PN16 | 99 |
| 718-0375-06-14512 | 375 | 405 | 495 | AS4087B5 | PN16 | 180 |
Enquiry
Scroll for more info
Components

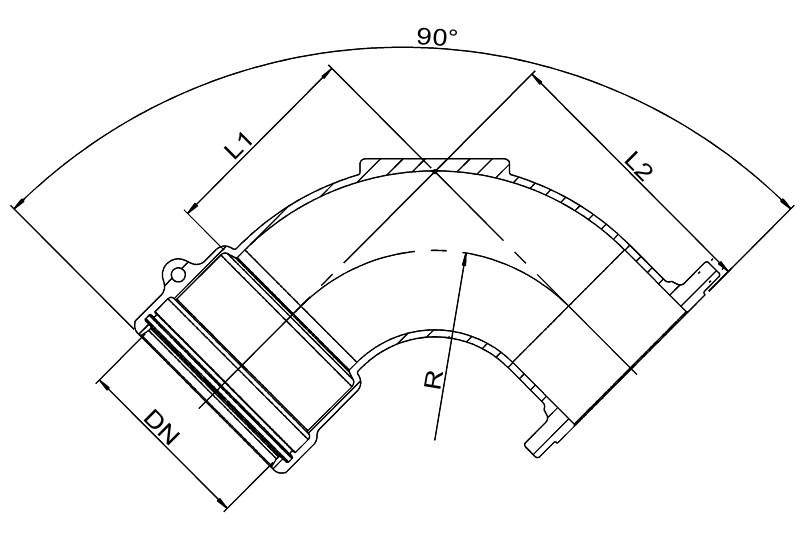

718-0614-001 d1_356411.jpg)
| 1. | Fitting | Ductile iron GJS-400-15 (GGG-40) |
Test/Approvals
- Production test according to AS/NZS 2280 sect 4.1
- StandardsMark approved to AS/NZS 2280
- WaterMark approved to AS/NZS 2280
Standards
- Designed to: AS/NZS 2280
- Flange drilling to AS/NZS 4087 B5
