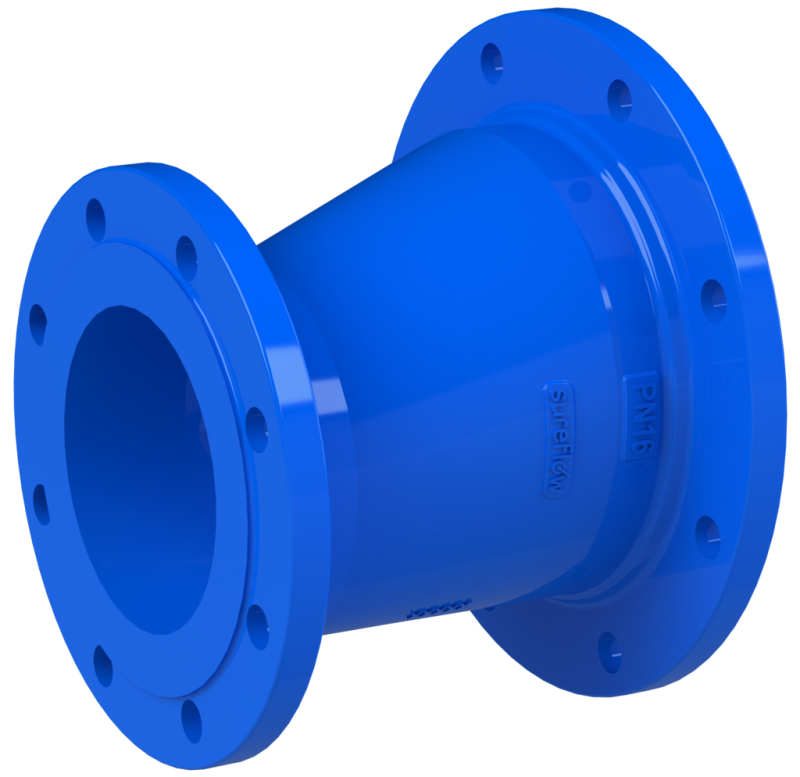

AVK DUCTILE IRON FITTING, REDUCER ECCENTRIC, FLANGE

PN16/35, AS/NZS 4087 B5/B6, DN80-DN750

AVK Wingfield Plant

Contact

AVK Australia Civil

559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

Ductile iron fitting, for water and other neutral liquids to max. 70°C

AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS/NZS 4158.

Variant 718/2110-001
Connection: Flanged
Material: Ductile Iron
DN: DN100 - DN750
PN: PN16/35

Features

  • For pipeline construction in both above and below ground water applications
  • High strength and impact resistance
  • Ductile iron fitting to AS/NZS 2280
  • Thermoset polymeric coated to AS/NZS 4158
  • Lifting eye for easy handling by lifting equipment

Downloads

Datasheet
Certificate(s)
Installation, Operation & Maintenance

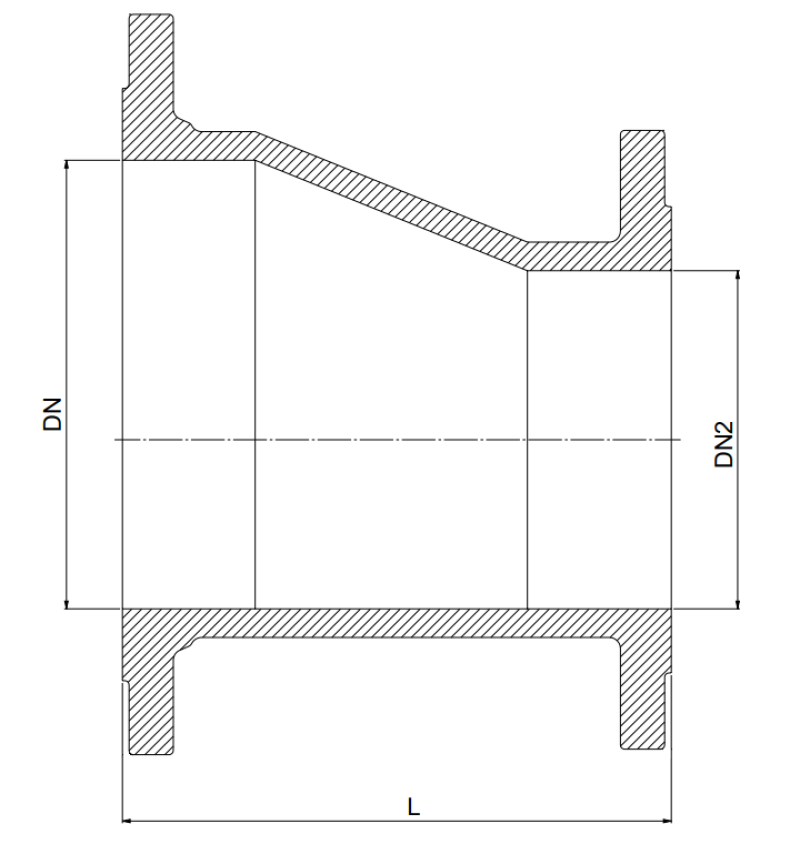

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 DN2
mm		 Product
PN Class		 Flange
drilling		 L
mm		 Theoretical
weight/kg
718-0101-21-10412 100 80 PN35 AS 4087 B6 165 15
718-0101-21-10512 100 80 PN16 AS 4087 B5 165 12
718-0152-21-10412 150 100 PN35 AS 4087 B6 235 20
718-0152-21-10512 150 100 PN16 AS 4087 B5 235 16
718-0153-21-10412 150 80 PN35 AS 4087 B6 298 17
718-0153-21-10512 150 80 PN16 AS 4087 B5 298 13
718-0201-21-10512 200 150 PN16 AS 4087 B5 248 23
718-0203-21-10512 200 100 PN16 AS 4087 B5 368 23
718-0251-21-10512 250 200 PN16 AS 4087 B5 254 33
718-0252-21-10512 250 150 PN16 AS 4087 B5 375 37
718-0301-21-10512 300 250 PN16 AS 4087 B5 260 50
718-0302-21-10412 300 200 PN35 AS 4087 B6 387 58
718-0302-21-10512 300 200 PN16 AS 4087 B5 387 45
718-0303-21-10512 300 150 PN16 AS 4087 B5 508 52
718-0377-21-10412 375 300 PN35 AS 4087 B6 337 100
718-0377-21-10512 375 300 PN16 AS 4087 B5 337 74
718-0382-21-10512 375 200 PN16 AS 4087 B5 584 84
718-0383-21-10512 375 225 PN16 AS 4087 B5 521 82
718-0384-21-10512 375 250 PN16 AS 4087 B5 457 81
718-0453-21-10412 450 300 PN35 AS 4087 B6 540 164
718-0453-21-10512 450 300 PN16 AS 4087 B5 540 120
718-0454-21-10412 450 250 PN35 AS 4087 B6 660 154
718-0454-21-10512 450 250 PN16 AS 4087 B5 660 123
718-0466-21-10512 450 375 PN16 AS 4087 B5 356 105
718-0501-21-10412 500 450 PN35 AS 4087 B6 305 171
718-0501-21-10512 500 450 PN16 AS 4087 B5 305 121
718-0504-21-10412 500 300 PN35 AS4087 B6 667 192
718-0504-21-10512 500 300 PN16 AS 4087 B5 667 150
718-0505-21-10512 500 250 PN16 AS 4087 B5 787 163
718-0518-21-10512 500 375 PN16 AS408 B5 483 140
718-0601-21-10512 600 500 PN16 AS 4087 B5 444 194
718-0602-21-10412 600 450 PN35 AS 4087 B6 572 225
718-0602-21-10512 600 450 PN16 AS 4087 B5 572 189
718-0605-21-10412 600 300 PN35 AS 4087 B6 934 270
718-0605-21-10512 600 300 PN16 AS 4087 B5 934 232
718-0607-21-10512 600 200 PN16 AS 4087 B5 1190 251
718-0618-21-10512 600 375 PN16 AS 4087 B5 749 246
718-0781-21-10412 750 600 PN35 AS4087 B6 645 415
718-0781-21-10512 750 600 PN16 AS 4087 B5 645 347
Enquiry
Scroll for more info

Components

1. Fitting Ductile iron GJS-400-15 (GGG-40)

Test/Approvals

  • Production test according to AS/NZS 2280 sect 4.1
  • StandardsMark approved to AS/NZS 2280
  • WaterMark approved to AS/NZS 2280

Standards

  • Designed to: AS/NZS 2280
  • Flange drilling to AS/NZS 4087 B5
