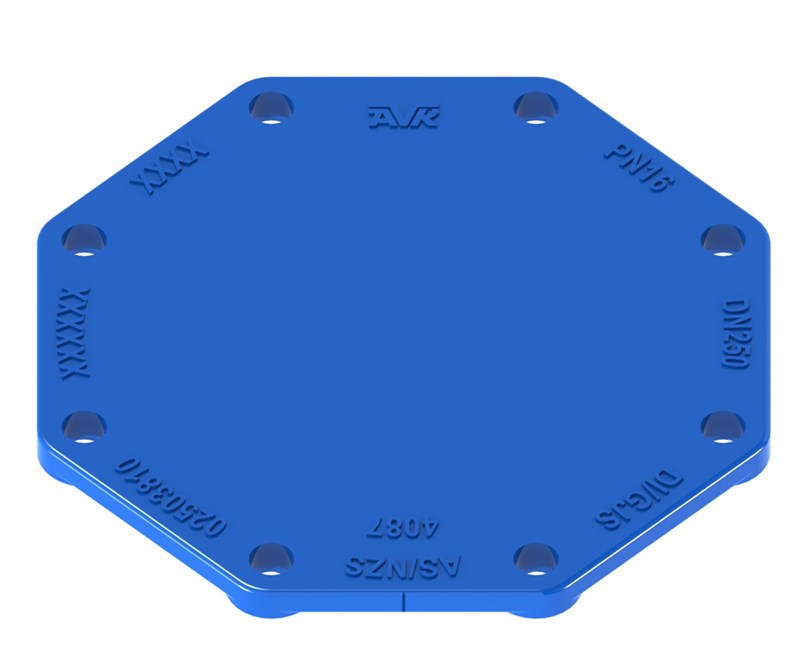

AVK DUCTILE IRON FITTING, BLANK FlANGE

PN16/35, AS/NZS 4087 B5/B6, DN80-DN750

AVK Wingfield Plant

Contact

AVK Australia Civil

559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

Blind flange to AS/NZS 4087 for water, waste water and neutral liquids to max. 70° C

AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS4158. Flanges are in accordance with AS/NZS 4087

Variant 718/3810-001
Connection: Flanged
Material: Ductile Iron
DN: DN80 - DN750

Features

  • Ductile iron flange to AS/NZS 4087
  • Drilling to table B5 or B6
  • Thermoset polymeric coated to AS4158

Downloads

Datasheet
Installation, Operation & Maintenance

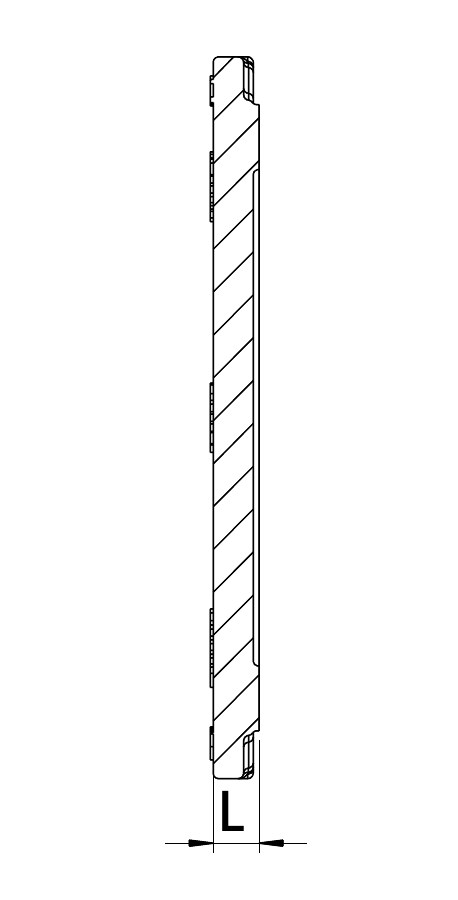

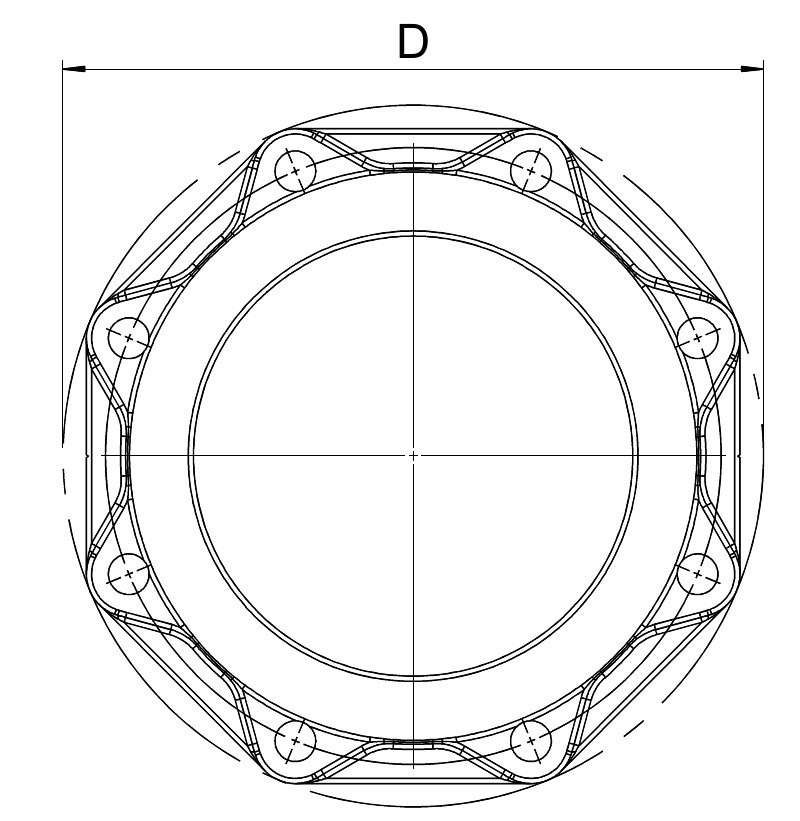

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Product
PN Class		 Flange
drilling		 D
mm		 L
mm		 Theoretical
weight / kg
718-0080-38-10412 80 PN35 AS 4087 B6 205 22 6.5
718-0080-38-10512 80 PN16 AS4087B5 185 18 1.8
718-0100-38-10412 100 PN35 AS 4087 B6 230 22 7
718-0100-38-10512 100 PN16 AS 4087 B5 215 20 3
718-0150-38-10412 150 PN35 AS4087 B6 305 27 12
718-0150-38-10512 150 PN16 AS4087B5 280 23 6.5
718-0200-38-10412 200 PN35 AS4087 B6 370 31 15
718-0200-38-10512 200 PN16 AS4087B5 335 23 11
718-0225-38-10412 225 PN35 AS4087 B6 405 34 22
718-0225-38-10512 225 PN16 AS4087B5 370 24 14
718-0250-38-10412 250 PN35 AS 4087 B6 430 34 22
718-0250-38-10512 250 PN16 AS 4087 B5 405 24 17
718-0300-38-10412 300 PN35 AS4087 B6 490 38 39
718-0300-38-10512 300 PN16 AS4087B5 455 30 31
718-0375-38-10412 375 PN35 AS4087 B6 580 42 65
718-0375-38-10512 375 PN16 AS4087B5 550 33 46
718-0450-38-10412 450 PN35 AS4087 B6 675 46 96
718-0450-38-10512 450 PN16 AS4087B5 640 33 62
718-0500-38-10412 500 PN35 AS4087 B6 735 49 118
718-0500-38-10512 500 PN16 AS4087B5 705 35 90
718-0600-38-10412 600 PN35 AS4087 B6 850 54 173
718-0600-38-10512 600 PN16 AS4087B5 825 42 143
718-0782-38-10412 750 PN35 AS4087 B6 1015 59 287
718-0782-38-10512 750 PN16 AS4087B5 995 47 250
Enquiry
Scroll for more info

Components

1. Fitting Ductile iron GJS-400-15 (GGG-40)
