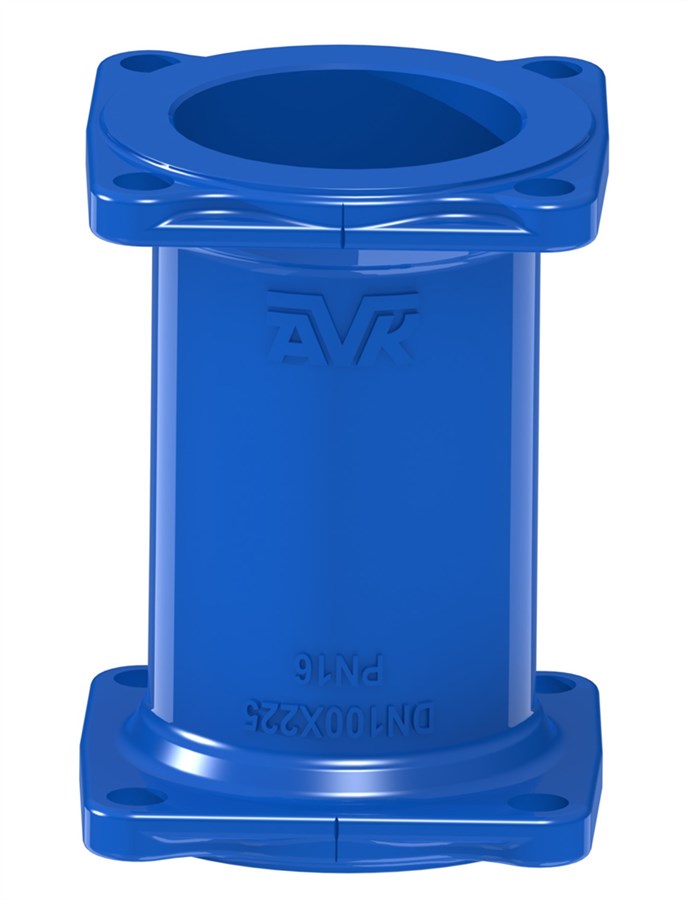

AVK DUCTILE IRON FITTING, HYDRANT RISER, FLANGE

PN16/35, AS/NZS 4087 B5/B6, DN80-DN150

AVK Wingfield Plant

Contact

AVK Australia Civil

559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

Ductile iron fitting, for water and other neutral liquids to max. 70°C

AVK range of fittings comprises a wide selection of variants with socket, spigot and flange connection. The fittings are made of ductile iron and are polymeric coated according to AS/NZS 4158.

Variant 718/4X10-001
Connection: Flanged
Material: Ductile Iron
DN: DN80 - DN150
PN: PN16/35

Features

  • For pipeline construction in both above and below ground water applications
  • High strength and impact resistance
  • Ductile iron fitting to AS/NZS 2280
  • Thermoset polymeric coated to AS/NZS 4158
  • Lifting eye for easy handling by lifting equipment

Downloads

Datasheet
Certificate(s)
Installation, Operation & Maintenance

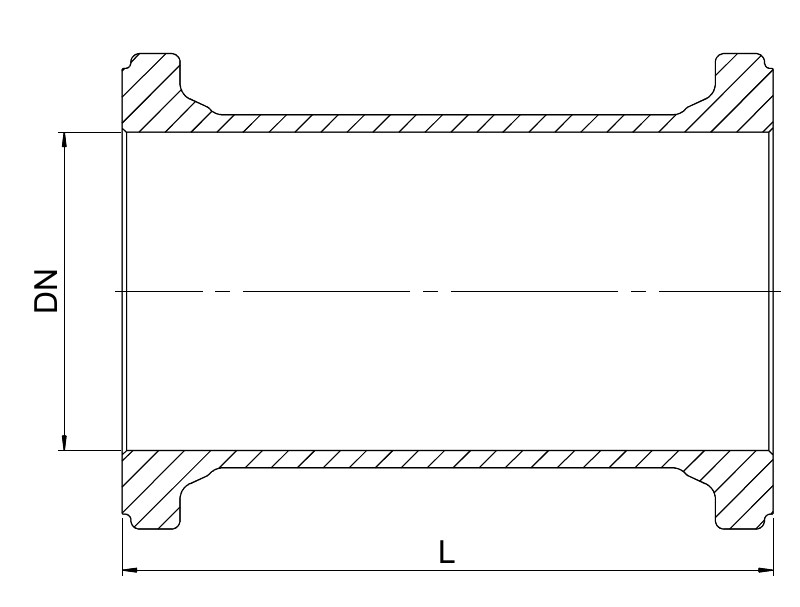

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Flange
drilling		 Product
PN Class		 L
mm		 Theoretical
weight / kg		 Notes
718-0080-40-10212 80 AS 4087 B5 PN16 100 7.36 Flange AS4087 B5 / As2129 Table D, Slotted holes
718-0080-40-10412 80 AS 4087 B6 PN35 100 7
718-0080-40-10512 80 AS 4087 B5 PN16 100 3.22
718-0080-41-10412 80 AS 4087 B6 PN35 150 8
718-0080-41-10512 80 AS 4087 B5 PN16 150 3.9
718-0080-43-10412 80 AS 4087 B6 PN35 225 9
718-0080-43-10512 80 AS 4087 B5 PN16 225 4.9
718-0080-45-10412 80 AS 4087 B6 PN35 300 10
718-0080-45-10512 80 AS 4087 B5 PN16 300 6.53
718-0080-46-10412 80 AS 4087 B6 PN35 375 11
718-0080-46-10512 80 AS 4087 B5 PN16 375 7.69
718-0080-48-10412 80 AS 4087 B6 PN35 450 13
718-0080-48-10512 80 AS 4087 B5 PN16 450 8.85
718-0080-50-10412 80 AS 4087 B6 PN35 600 20
718-0080-50-10512 80 AS 4087 B5 PN16 600 11.17
718-0100-40-10512 100 AS 4087 B5 PN16 100 5.05
718-0100-40-10L12 100 AS 4087 B5 PN16 100 5.83 Flange As 4087 B5, Slotted flange
718-0100-41-10512 100 AS 4087 B5 PN16 150 5.84
718-0100-43-10512 100 AS 4087 B5 PN16 225 7.01
718-0100-45-10512 100 AS 4087 B5 PN16 300 8.9
718-0100-46-10512 100 AS 4087 B5 PN16 375 10.25
718-0100-48-10512 100 AS 4087 B5 PN16 450 11.6
718-0100-49-10512 100 AS 4087 B5 PN16 500 12.39
718-0100-50-10512 100 AS 4087 B5 PN16 600 14.29
718-0150-45-10512 150 AS 4087 B5 PN16 300 15.66
718-0150-49-10512 150 AS 4087 B5 PN16 500 20.97
718-0150-50-10512 150 AS 4087 B5 PN16 600 23.29
Enquiry
Scroll for more info

Components

1. Body Ductile iron GJS-400-15 (GGG-40)

Test/Approvals

  • Production test according to AS/NZS 2280 sect 4.1
  • StandardsMark approved to AS/NZS 2280
  • WaterMark approved to AS/NZS 2280

Standards

  • Designed to: AS/NZS 2280
