AVK GATE VALVE, METAL SEATED, PN16

CC/ACC, ISO Mounting Flange, AS/NZS 4087 B5, DN80-300

AVK Wingfield Plant

Contact

AVK Australia Civil

559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

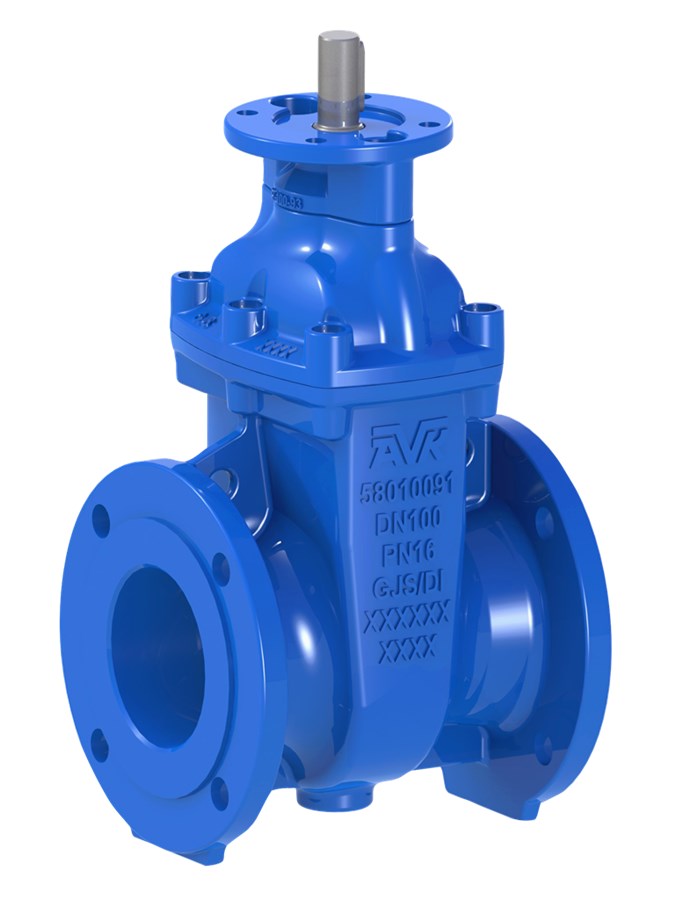

Metal seated gate valve, CC491K seat rings, for water and neutral liquids to max. 70°C

AVK metal seated wedge gate valves are primarily designed for the flow isolation of a length of pipeline or piece of equipment. It uses a ductile iron gate that houses bronze rings to ensure a watertight seal.

Variant 580/92-001
Connection: Flanged
Material: Ductile Iron
DN: DN80 - DN300
PN: PN16
Closing direction: CC / ACC

Features

  • Bronze wedge nut with lubricating abilities providing optimum compatibility with stem
  • The face ring that is firmly secured to the wedge is machined to a fine surface finish to ensure optimum contact seal with body seat ring
  • Wedge with guides, which ensures a uniform closure
  • A large through bore housing for the stem in the wedge prevents stagnant water or impurities
  • Stainless steel stem and bolts for increased corrosion resistance
  • Seal housing incorporates inner/outer o-ring seals and wiper ring for long life operation
  • Stem sealing replaceable under pressure
  • Round bonnet gasket fixed in a recess to prevent blowout with integral bolt sealing
  • Full bore
  • Blue fusion bonded epoxy coating according to AS/NZS 4158
  • Potable Water approval to AS/NZS 4020

Downloads

Datasheet
Related Datasheets
Tender Text
Certificate(s)
Installation, Operation & Maintenance

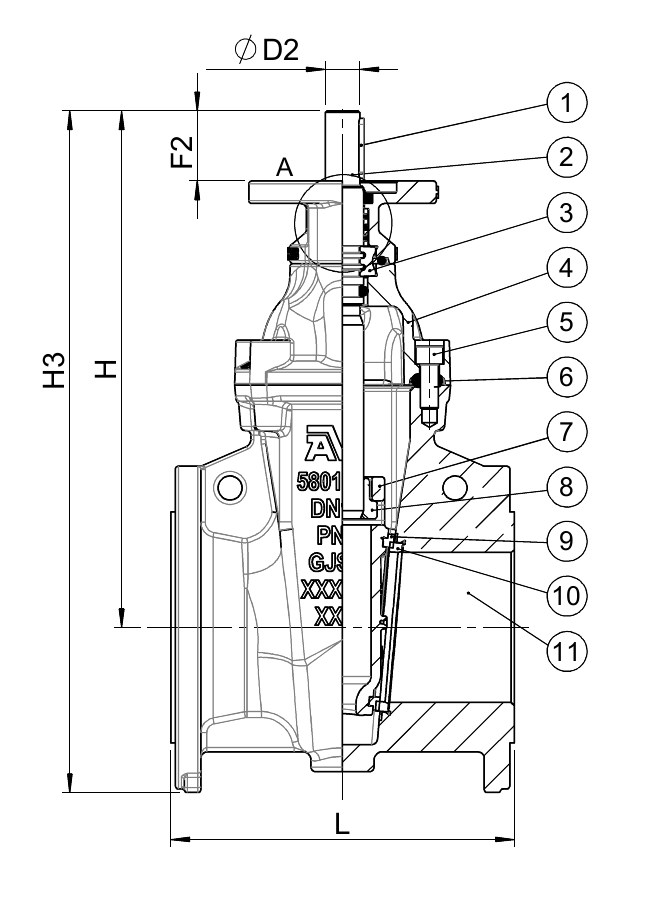

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Operating
Direction		 L
mm		 W
mm		 H
mm		 H3
mm		 D2
mm		 F2
mm		 ISO
Flange		 Theoretical
weight/kg
580-080-92-050012 80 CC 203 185 313 413 23 47 F10 20
580-080-92-150012 80 ACC 203 185 313 413 23 47 F10 20
580-100-92-050012 100 CC 229 215 344 454 23 47 F10 27
580-100-92-150012 100 ACC 229 215 344 454 23 47 F10 27
580-150-92-050012 150 CC 267 280 421 563 23 47 F10 46
580-150-92-150012 150 ACC 267 280 421 563 23 47 F10 46
580-200-92-050012 200 CC 292 335 523 693 23 47 F14 77
580-200-92-150012 200 ACC 292 335 523 693 23 47 F14 77
580-225-92-050012 225 CC 305 370 581 766 30 47 F14 99
580-225-92-150012 225 ACC 305 370 581 766 30 47 F14 99
580-250-92-050012 250 CC 330 405 594 796 30 47 F14 107
580-250-92-150012 250 ACC 330 405 594 796 30 47 F14 107
580-300-92-050012 300 CC 356 455 673 901 30 47 F14 150
580-300-92-150012 300 ACC 356 455 673 901 30 47 F14 150
2D/3D drawings
Enquiry
Scroll for more info

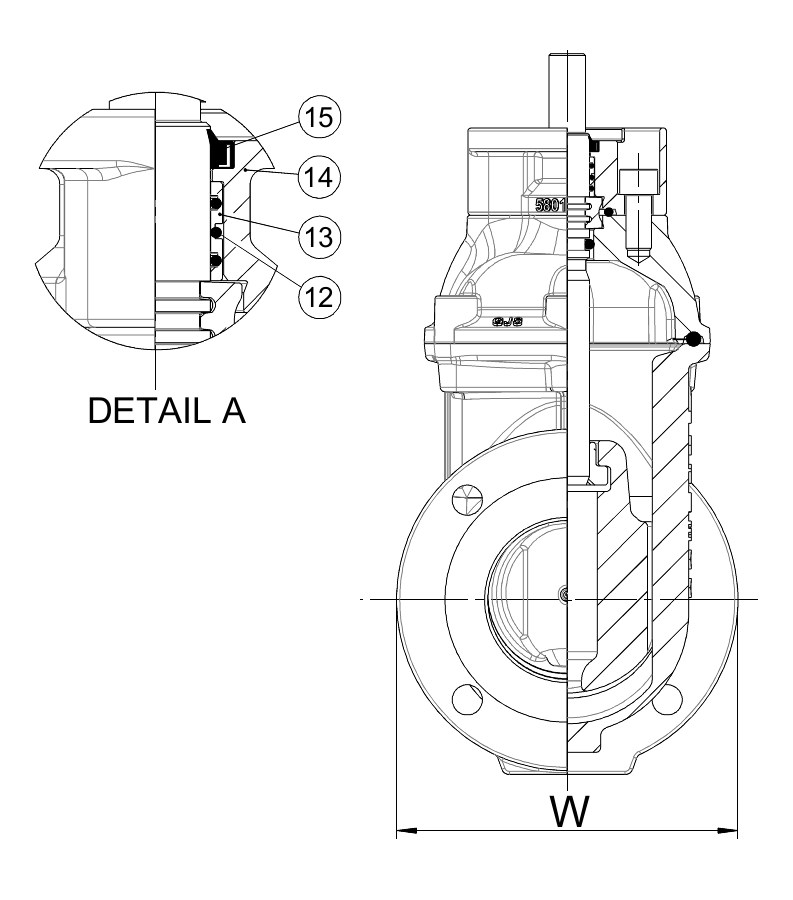

Components

1. Key Stainless steel A4-70
2. Stem Stainless steel 1.4057
3. Thrust collar Brass, DZR CW602N (CZ132)
4. Bonnet Ductile iron GJS-500-7 (GGG-50)
5. Bolt Stainless steel A4-70
6. Bonnet gasket EPDM rubber
7. Wedge Ductile iron GJS-500-7 (GGG-50)
8. Wedge nut Bronze CC331G (AB1)
9. Face ring Bronze CC491K (LG2)
10. Seat ring Bronze CC491K (LG2)
11. Body Ductile iron GJS-500-7 (GGG-50)
12. O-ring NBR rubber
13. Seal retainer Bronze CC491K (LG2)
14. ISO flange Ductile iron GJS-500-7 (GGG-50)
15. Wiper ring NBR rubber

Test/Approvals

  • Production test according to AS/NZS 2638.1 Body:1,5 x PN, Seat: 1.1 x PN
  • StandardsMark approved to AS/NZS 2638.1
  • WaterMark approved to AS/NZS 2638.1

Standards

  • Designed to: AS/NZS 2638.1
  • Face to face: AS/NZS 2638.1
  • Flange drilling to AS/NZS 4087 B5
