AVK GATE VALVE, METAL SEATED, PN16
CC/ACC, ISO Mounting Flange, Shoe & Channel, AS/NZS 4087 B5, DN375-DN600
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

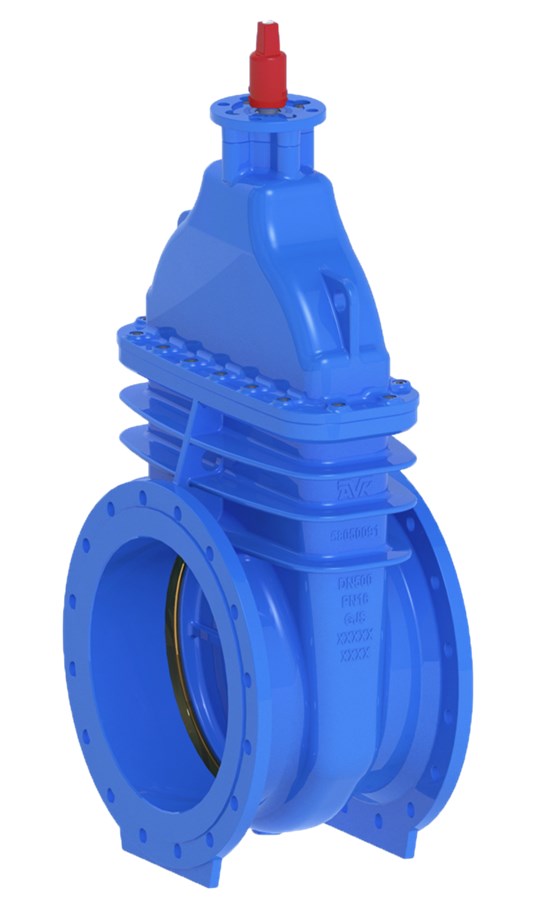

Metal seated gate valve, C95210 seat rings, for water and neutral liquids to max. 70°C
AVK metal seated wedge gate valves are primarily designed for the flow isolation of a length of pipeline or piece of equipment. It uses a ductile iron gate that houses bronze rings to ensure a watertight seal.
| Variant 580/92-003 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN375 - DN600 |
| PN: | PN16 |
| Closing direction: | CC / ACC |
Features
- Bronze wedge nut with lubricating abilities providing optimum compatibility with stem
- The wedge face ring is machined to a fine surface finish to ensure optimum compatibility with body seat rings
- Wedge with guides, which ensure uniform closure
- A large through bore housing for the stem in the wedge prevents stagnant water or impurities
- Stainless steel stem and bolts for increased corrosion resistance
- Seal housing incorporates inner/outer O-ring seals for long life operation
- Stem sealing replaceable under pressure
- Round bonnet gasket fixed in a recess to prevent blowout with integral bolt sealing
- Full bore
- Lifting eyes for easy handling
- Blue fusion bonded epoxy according to AS/NZS 4158
- Potable Water approval to AS/NZS4020
Downloads
Datasheet
Related Datasheets
Tender Text
Certificate(s)
Installation, Operation & Maintenance

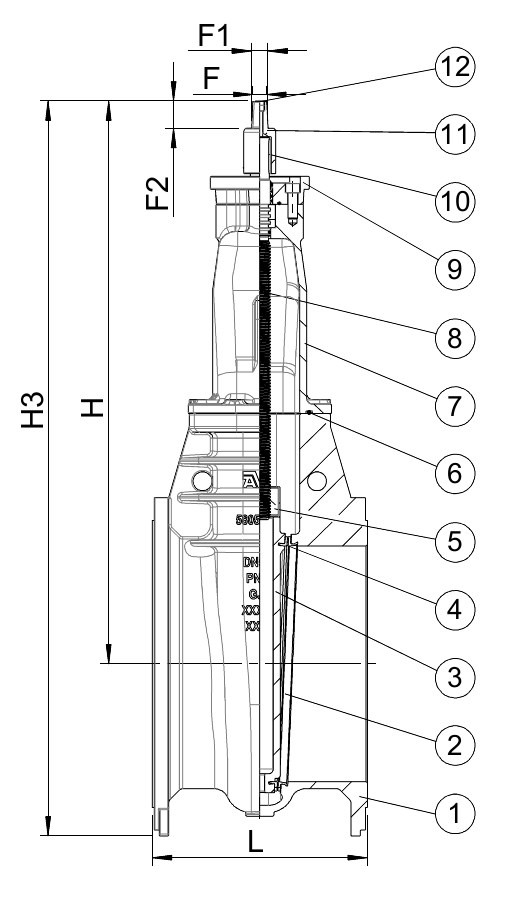

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
Operating Direction |
Flange drilling |
L mm |
W mm |
H mm |
H3 mm |
F mm |
F1 mm |
F2 mm |
Theoretical weight/kg |
ISO Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 580-375-92-250112 | 375 | CC | AS 4087 B5 | 381 | 608 | 991 | 1291 | 29 | 35 | 57 | 290 | F14 |
| 580-375-92-350112 | 375 | ACC | AS 4087 B5 | 381 | 608 | 991 | 1291 | 29 | 35 | 57 | 290 | F14 |
| 580-400-92-250112 | 400 | CC | AS 4087 B5 | 381 | 608 | 991 | 1291 | 29 | 35 | 57 | 290 | F14 |
| 580-400-92-350112 | 400 | ACC | AS 4087 B5 | 381 | 608 | 991 | 1291 | 29 | 35 | 57 | 290 | F14 |
| 580-450-92-250112 | 450 | CC | AS 4087 B5 | 432 | 674 | 1121 | 1446 | 29 | 35 | 57 | 377 | F14 |
| 580-450-92-350112 | 450 | ACC | AS 4087 B5 | 432 | 674 | 1121 | 1446 | 29 | 35 | 57 | 377 | F14 |
| 580-500-92-250112 | 500 | CC | AS 4087 B5 | 457 | 734 | 1194 | 1559 | 29 | 35 | 57 | 474 | F16 |
| 580-500-92-350112 | 500 | ACC | AS 4087 B5 | 457 | 734 | 1194 | 1559 | 29 | 35 | 57 | 474 | F16 |
| 580-600-92-250112 | 600 | CC | AS 4087 B5 | 508 | 836 | 1355 | 1795 | 29 | 35 | 57 | 631 | F16 |
| 580-600-92-350112 | 600 | ACC | AS 4087 B5 | 508 | 836 | 1355 | 1795 | 29 | 35 | 57 | 631 | F16 |
2D/3D drawings
Enquiry
Scroll for more info

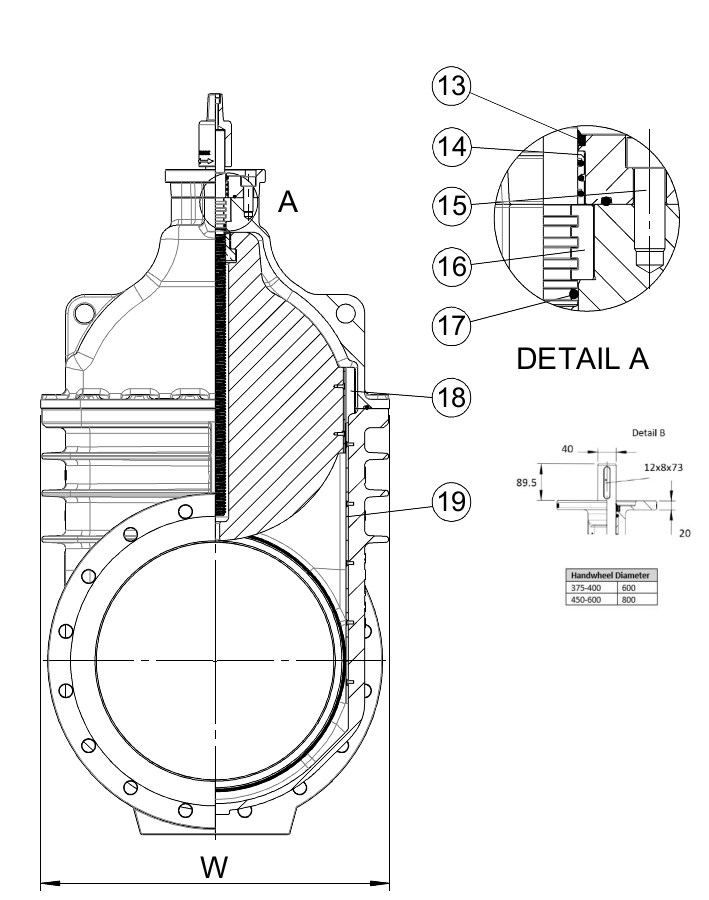

Components
| 1. | Body | Ductile iron GJS-500-7 (GGG-50) |
| 2. | Seat ring | Alu-bronze C95200 |
| 3. | Wedge | Ductile iron GJS-500-7 (GGG-50) |
| 4. | Face ring | Alu-bronze C95200 |
| 5. | Wedge nut | Alu-bronze C95810 |
| 6. | O-cord | NBR rubber |
| 7. | Bonnet | Ductile iron GJS-500-7 (GGG-50) |
| 8. | Stem | Stainless steel 431 |
| 9. | Gland flange | Ductile iron GJS-500-7 (GGG-50) |
| 10. | Key | Stainless steel A4-70 |
| 11. | Stem Cap | Ductile iron GJS-500-7 (GGG-50) |
| 12. | Insert | Plastic |
| 13. | Wiper ring | NBR rubber |
| 14. | Seal retainer | Bronze CC491K (LG2) |
| 15. | Bolt | Stainless steel A4-70 |
| 16. | Thrust collar | Alu-bronze C95200 |
| 17. | O-ring | NBR rubber |
| 18. | Shoe | Bronze CC491K (LG2) |
| 19. | Channel | Bronze CC491K (LG2) |
Test/Approvals
- Production test according to AS/NZS 2638.1 Body:1,5 x PN, Seat: 1.1 x PN
- StandardsMark approved to AS/NZS 2638.1
- WaterMark approved to AS/NZS 2638.1
Standards
- Designed to: AS/NZS 2638.1
- Face to face: AS/NZS 2638.1
- Flange drilling to AS/NZS 4087 B5
