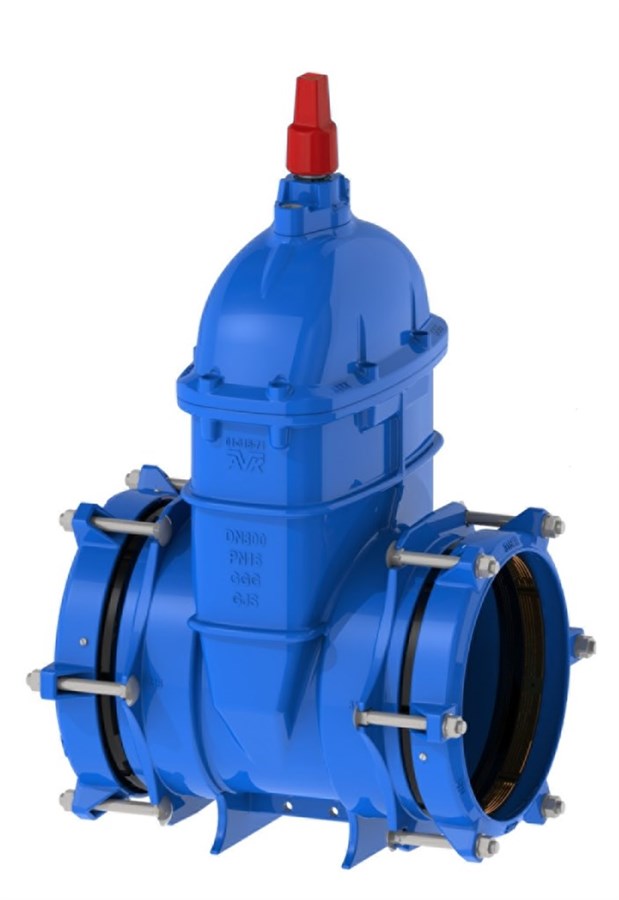

GATE VALVE, RESILIENT SEATED, PN16

CC, Stem Cap, SUPA PLUS™ Socket ends for PE DN90-DN315

AVK Wingfield Plant

Contact

AVK Australia and New Zealand

559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry

SUPA PLUS™ tensile resistant socket end gate valve for drinking water and other neutral liquids to max. 70°C. For AS/NZS 4020 compliance max temp is 40°C

AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.

Variant 01/91-001
Connection: Supa Plus™ Coupling
Material: Ductile Iron
DN: DN80 - DN300
PN: PN16
Closing direction: Clockwise Close

Features

  • This product is compliant with the Lead-Free requirements of the National Construction Code Volume 3
  • Angular deflection up to 3.5°
  • Sockets use a combined compression drinking water approved EPDM gasket and gunmetal RG5 tensile ring for PE pipe connection
  • Delta Seal coated stainless steel tension bolts for added corrosion protection
  • Polyamide wedge shoes protect the wedge rubber during opening and closing and provide smooth operation
  • Wedge fully vulcanized with drinking water approved EPDM rubber, a large conical stem hole creates circulation preventing stagnant water
  • Fixed, integral wedge nut prevents vibration and increases durability
  • Removable gland flange for under-pressure replacement of thrust and radial bearings and seals
  • Stainless steel stem with wedge stop and rolled threads for high strength
  • Three independent stem seals: an outermost NBR wiper ring protects against pollution, a polyamide radial bearing with NBR O-rings and an NBR O-ring as the main stem seal
  • Round EPDM bonnet gasket housed in a fixed recess to avoid blow-out
  • Counterbored and hot-melt sealed stainless steel bonnet bolts are further protected by an integral bonnet gasket
  • Full bore
  • Fusion bonded epoxy coating to AS/NZS 4158

Downloads

Datasheet
Certificate(s)
Installation

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Operating
Direction		 Dd
mm		 H
mm		 H3
mm		 L
mm		 L1
mm		 L2
mm		 F
mm		 F1
mm		 F2
mm		 W
mm		 Theoretical
weight/kg
01-090-91-41412 80 CC 90 307 373 321 261 66 28.5 33.5 50 199 15
01-090-91-51412 80 ACC 90 307 373 321 261 66 28.5 33.5 50 199 15
01-110-91-41412 100 CC 110 328 418 322 261 72 28.5 33.5 50 194 19
01-110-91-51412 100 ACC 110 328 418 322 261 72 28.5 33.5 50 194 19
01-125-91-41412 125 CTC 125 400 494 333 200 80 #19/22 222 25
01-140-91-41412 125 CTC 140 400 500 333 216 80 #19/22 222 27
01-160-91-41412 150 CC 160 434 551 365 305 99 28.5 33.5 50 274 34
01-160-91-51412 150 ACC 160 434 551 365 305 99 28.5 33.5 50 274 34
01-180-91-41412 150 CC 180 434 559 365 333 99 28.5 33.5 50 274 37
01-180-91-51412 150 ACC 180 434 559 365 333 99 28.5 33.5 50 274 37
01-200-91-41412 200 CC 200 572 730 418 359 120 27.8 33.5 57 334 55
01-200-91-51412 200 ACC 200 572 730 418 359 120 27.8 33.5 57 334 55
01-225-91-41412 200 CC 225 567 737 476 411 110 27.8 33.5 57 342 63
01-225-91-51412 200 ACC 225 567 737 476 411 110 27.8 33.5 57 342 63
01-250-91-41412 250 CC 250 664 850 513 493 143 27.8 33.5 57 422 105
01-250-91-51412 250 ACC 250 664 850 513 493 143 27.8 33.5 57 422 105
01-280-91-41412 250 CC 280 664 853 513 494 153 27.8 33.5 57 422 109
01-280-91-51412 250 ACC 280 664 853 513 494 153 27.8 33.5 57 422 109
01-315-91-41412 300 CC 315 747 970 554 533 184 27.8 33.5 57 452 138
01-315-91-51412 300 ACC 315 747 970 554 533 184 27.8 33.5 57 452 138
2D/3D drawings
Enquiry
Scroll for more info

Components

1. Insert Plastic
2. Stem Cap Ductile iron GJS-500-7
3. Collar Brass, DZR CW724R, low lead
4. Stem Stainless steel 1.4057
5. Bolt Stainless steel A4
6. Washer Stainless steel A2
7. Nut Stainless steel A4
8. Bolt Stainless steel A2
9. Tensile Ring Bronze CC491K (LG2)
10. Gasket EPDM rubber
11. Bracket Ductile iron 450-10
12. Wiper ring NBR rubber
13. Gland flange Ductile iron GJS-500-7
14. Bolt Stainless steel A4
15. NBR rubber
16. Seal retainer Bronze CC491K (LG2)
17. Bonnet Ductile iron GJS-500-7
18. Bonnet gasket EPDM rubber
19. Body Ductile iron GJS-500-7
20. Wedge nut Brass, DZR CW724R, low lead
21. Wedge shoe PA 6.6
22. Wedge rubber EPDM rubber
23. Wedge core Ductile iron GJS-500-7

Test/Approvals

  • Connection certified to AS/NZS 4129
  • StandardsMark approved to AS/NZS 4129
  • WaterMark approved to AS/NZS 4129
  • WaterMark approved to AS/NZS 2638.2
  • This product is compliant with the Lead-Free requirements of the National Construction Code Volume 3

Standards

  • Designed to: AS/NZS 2638.2
