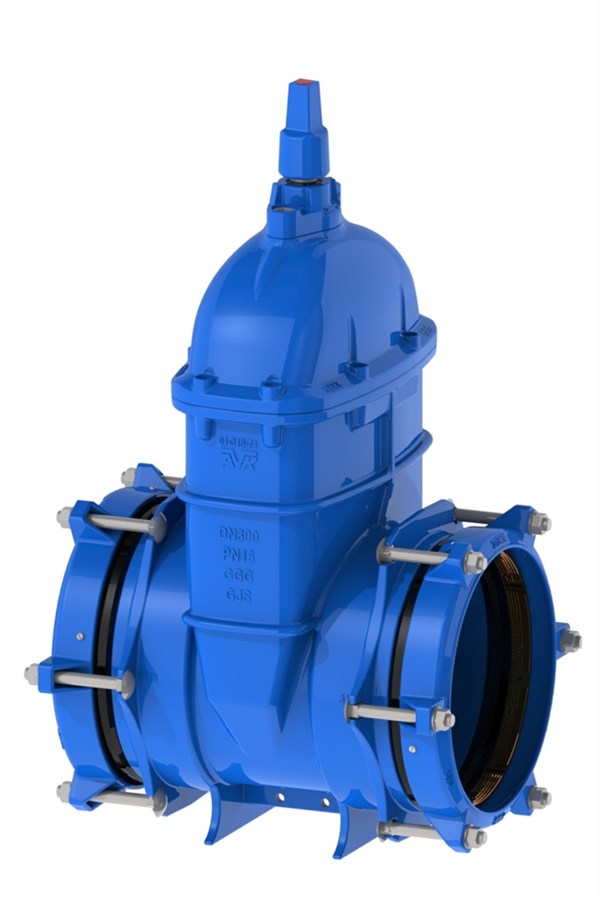

AVK GATE VALVE, RESILIENT SEATED, PN16
ACC, Stem Cap, SUPA PLUS™ Socket ends for PE DN90-DN315

Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
SUPA PLUS™ tensile resistant socket end gate valve for drinking water and other neutral liquids to max. 70°C. For AS/NZS 4020 compliance max temp is 40°C
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.
Variant 01/91-003 | |
---|---|
Connection: | Supa Plus™ Coupling |
Material: | Ductile Iron |
DN: | DN80 - DN300 |
PN: | PN16 |
Closing direction: | Anti Clockwise Close |
Features
-
Angular deflection up to 3.5°
-
Sockets use a combined compression drinking water approved EPDM gasket and gunmetal RG5 tensile ring for PE pipe connection
-
Delta Seal coated stainless steel tension bolts for added corrosion protection
-
Polyamide wedge shoes protect the wedge rubber during opening and closing and provide smooth operation
-
Wedge fully vulcanized with drinking water approved EPDM rubber, a large conical stem hole creates circulation preventing stagnant water
-
Fixed, integral wedge nut prevents vibration and increases durability
-
Removable gland flange for under-pressure replacement of thrust and radial bearings and seals
-
Stainless steel stem with wedge stop and rolled threads for high strength
-
Three independent stem seals: an outermost NBR wiper ring protects against pollution, a polyamide radial bearing with NBR O-rings and an NBR O-ring as the main stem seal
-
Round EPDM bonnet gasket housed in a fixed recess to avoid blow-out
-
Counterbored and hot-melt sealed stainless steel bonnet bolts are further protected by an integral bonnet gasket
-
Full bore
-
Fusion bonded epoxy coating to AS/NZS 4158
Downloads

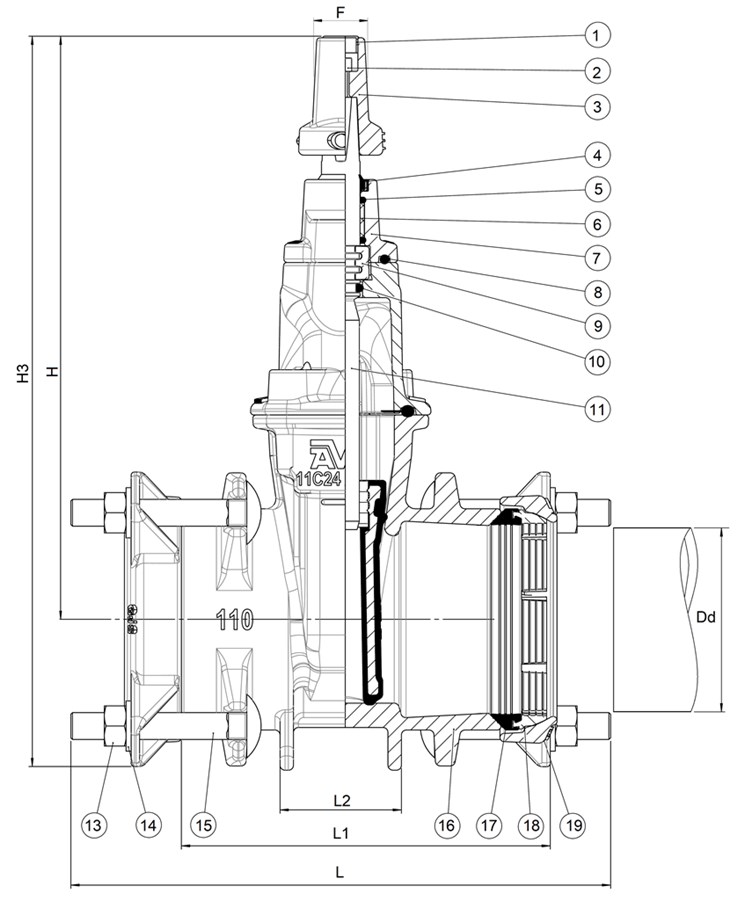

Reference nos. and dimensions:
AVK ref. no. | DN mm |
Dd mm |
H mm |
H3 mm |
L mm |
L1 mm |
L2 mm |
W mm |
Theoretical weight/kg |
---|---|---|---|---|---|---|---|---|---|
01-090-91-51412 | 80 | 90 | 325 | 390 | 321 | 160 | 66 | 200 | 16 |
01-110-91-51412 | 100 | 110 | 348 | 436 | 322 | 220 | 72 | 195 | 20 |
01-125-91-51412 | 125 | 125 | 400 | 494 | 333 | 200 | 80 | 222 | 25 |
01-140-91-51412 | 125 | 140 | 400 | 500 | 333 | 216 | 80 | 222 | 27 |
01-160-91-51412 | 150 | 160 | 430 | 538 | 365 | 232 | 100 | 275 | 35 |
01-180-91-51412 | 150 | 180 | 430 | 542 | 365 | 238 | 100 | 275 | 39 |
01-200-91-51412 | 200 | 200 | 560 | 710 | 418 | 284 | 110 | 335 | 57 |
01-225-91-51412 | 200 | 225 | 565 | 715 | 476 | 286 | 120 | 342 | 65 |
01-250-91-51412 | 250 | 250 | 650 | 836 | 528 | 340 | 147 | 374 | 100 |
01-280-91-51412 | 250 | 280 | 657 | 851 | 528 | 340 | 150 | 389 | 102 |
01-315-91-51412 | 300 | 315 | 733 | 930 | 570 | 380 | 185 | 447 | 136 |

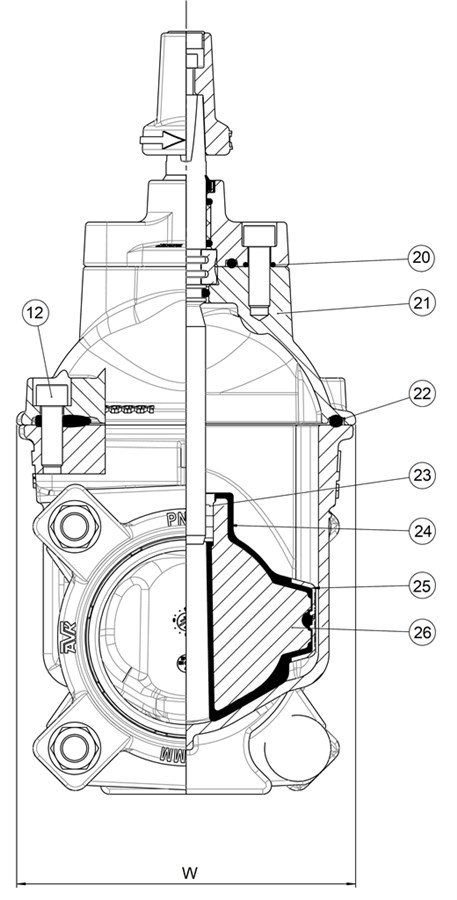

Components
1. | Insert | Plastic |
2. | Bolt | Stainless steel A2-70 |
3. | Stem Cap | Ductile iron GJS-500-7 |
4. | Wiper ring | NBR rubber |
5. | O-ring | NBR rubber |
6. | Bushing | Polyamide |
7. | Gland flange | Ductile iron GJS-500-7 |
8. | O-ring | NBR rubber |
9. | Thrust collar | Brass, DZR CW602N |
10. | O-ring | NBR rubber |
11. | Stem | Stainless steel 1.4057 (431) |
12. | Bolt | Stainless steel A4-70 |
13. | Nut | Stainless steel A4-70 |
14. | Washer | Stainless steel A2-70 |
15. | Bolt | Stainless steel A2-70 |
16. | Body | Ductile iron GJS-500-7 |
17. | Gasket | EPDM rubber |
18. | Tensile Ring | Bronze CC491K |
19. | Bracket | Ductile iron GJS-500-7 |
20. | O-ring | NBR rubber |
21. | Bonnet | Ductile iron GJS-500-7 |
22. | Bonnet gasket | EPDM rubber |
23. | Wedge nut | Brass, DZR CW602N (CZ132) |
24. | Wedge rubber | EPDM rubber |
25. | Wedge shoe | Polyamide |
26. | Wedge core | Ductile iron GJS-500-7 |
Test/Approvals
- Connection certified to AS/NZS 4129
- StandardsMark approved to AS/NZS 4129
- WaterMark approved to AS/NZS 4129
- WaterMark approved to AS/NZS 2638.2
Standards
- Designed to: AS/NZS 2638.2
