AVK GATE VALVE, RESILIENT SEATED, PN 16

ACC, EPDM seal, SS Stem, SDR PE Pipe Ends, DN80 - DN300

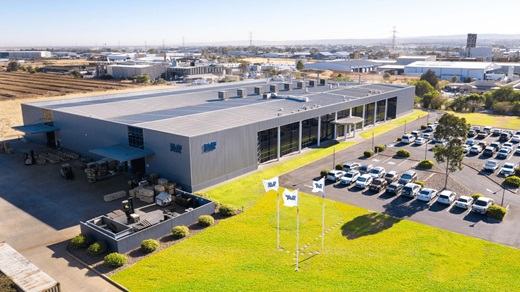

AVK Wingfield Plant

Contact

AVK Australia Civil

559A Grand Junction Road Wingfield, SA 5013 Sales and Technical enquiry

Gate valve with PE pipes for water, sewage and neutral liquid applications to max. 70°C. For AS/NZS 4020 compliance, max temp 40°C.

AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.

Variant 36/20-003
Connection: PE-pipe Ends
Material: Ductile Iron
DN: DN80 - DN300
PN: PN16
Closing direction: Anti Clockwise Close

Features

  • Fixed, integral wedge nut prevents vibration and ensures durability
  • Ductile iron wedge, fully vulcanized with EPDM rubber
  • Stainless steel gland flange, stem and bolts for increased corrosion resistance
  • Seal housing incorporates dual O-ring seals and wiper ring for long life operation
  • Stem sealing replaceable under pressure
  • Round bonnet gasket fixed in a recess groove in bonnet preventing it from being blown out by pressure surges
  • Bonnet bolts encircled by the bonnet gasket and gland bolts encircled by O-ring ,thus there is no risk of corrosion
  • Full bore
  • Blue fusion bonded epoxy according to AS/NZS 4158
  • A standard PE pipe is pressed onto the grooved valve end, locked with a steel ring and sealed with a plastic shrink hose. The boltless, full bore PE end connection is tensile resistant and stronger than the PE pipe itself. The PE pipe end enables direct welding into PE pipes resulting in a fast and secure assembly.

Reference nos. and dimensions:

Close Download package
AVK ref. no. DN
mm
D
mm
L
mm
W
mm
H
mm
H3
mm
F
mm
F1
mm
F2
mm
Theoretical
weight/kg
2D/3D drawings Enquiry
36-090-20-483512 80 90 888 174 324 382 28.5 33.5 50 13
36-110-20-483512 100 110 741 195 347 417 28.5 33.5 50 18
36-125-20-483512 125 125 1091 222 391 476 28.5 33.5 50 24
36-140-20-483512 125 140 875 222 391 476 28.5 33.5 50 27
36-160-20-483512 150 160 1060 275 429 528 28.5 33.5 50 40
36-180-20-483512 150 180 1057 275 429 537 28.5 33.5 50 38
36-200-20-483512 200 200 1077 335 561 686 27.8 33.5 57 66
36-225-20-483512 200 225 1077 335 561 695 27.8 33.5 57 74
36-250-20-483512 250 250 1350 422 656 808 27.8 33.5 57 101
36-280-20-483512 250 280 1350 422 656 817 27.8 33.5 57 123
36-315-20-483512 300 315 1316 452 739 930 27.8 33.5 57 172

Downloads

Datasheets
Installation, Operation & Maintenance

Components

1. Stem Cap Ductile iron GJS-500-7 (GGG-50)
2. Body Ductile iron GJS-500-7 (GGG-50)
3. Bonnet Ductile iron GJS-500-7 (GGG-50)
4. Gland flange Stainless steel 1.4408
5. Bushing PA 6.6
6. O-ring NBR rubber
7. Thrust collar Brass, DZR CW602N
8. Stem Stainless steel 1.4057 (431)
9. Wiper ring NBR rubber
10. O-ring NBR rubber
11. O-ring NBR rubber
12. Bolt Stainless steel A4-70
13. Bonnet gasket EPDM rubber
14. Wedge Ductile iron GJS-500-7
15. Wedge nut Brass, DZR CW602N
16. Wedge rubber EPDM rubber
17. Bolt, socket head Stainless steel 316
18. Stem Cap Ductile iron GJS-500-7
19. O-ring NBR rubber
20. Bolt, socket head Stainless steel 316
21. Stem Cap Plastic
22. Pipe PE 100
23. Shrink hose
24. Sleeve Mild steel

Test/Approvals

  • Seat: 1.1 x PN (in bar), Body: 2 x PN (in bar). Operation torque test.

Standards

  • Designed to: AS/NZS 2638.2, Designed to: AS/NZS 4129, Designed to: AS/NZS 4130
