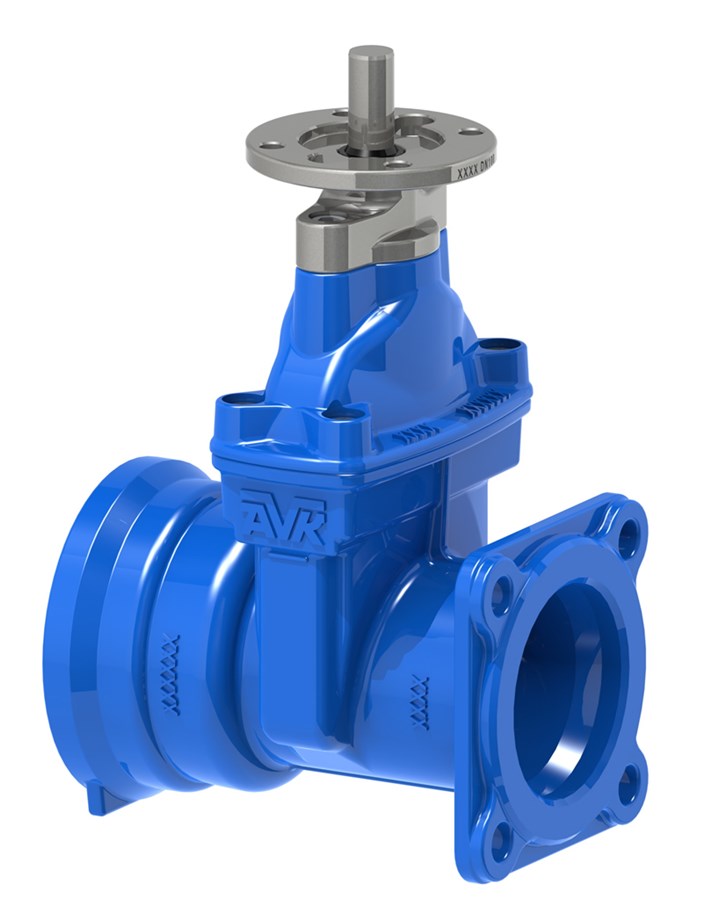

AVK GATE VALVE, RESILIENT SEATED, PN16
ACC, ISO Mounting Flange, Socket x Flange, DN80-DN150
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Gate valve for drinking water and neutral liquids to max. 70°C. For AS/NZS 4020 compliance, max temp 40°C,
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.
| Variant 570/72-002 | |
|---|---|
| Connection: | Socket x Flange |
| Material: | Ductile Iron |
| DN: | DN80 - DN150 |
| PN: | PN16 |
| Closing direction: | Anti Clockwise Close |
Features
- This product is compliant with the Lead-Free requirements of the National Construction Code Volume 3
- Fixed, integral wedge nut prevents vibration
- Ductile iron wedge, fully vulcanized with EPDM rubber
- Stainless steel gland flange, stem and bolts for increased corrosion resistance
- Seal housing incorporates o-rings for sealing and a metal reinforced wiper ring for protection against external dust
- Stem sealing replaceable under pressure
- Round bonnet gasket fixed in a recess to prevent blow-out, with integral bolt sealing
- Counterbored stainless steel bonnet bolts encircled by the bonnet gasket and sealed with hotmelt glue
- Full bore
- Epoxy coating to AS/NZS 4158
- Approved to AS/NZS 4020
Downloads
| AVK_Gate valves_animation_2022.mp4 |

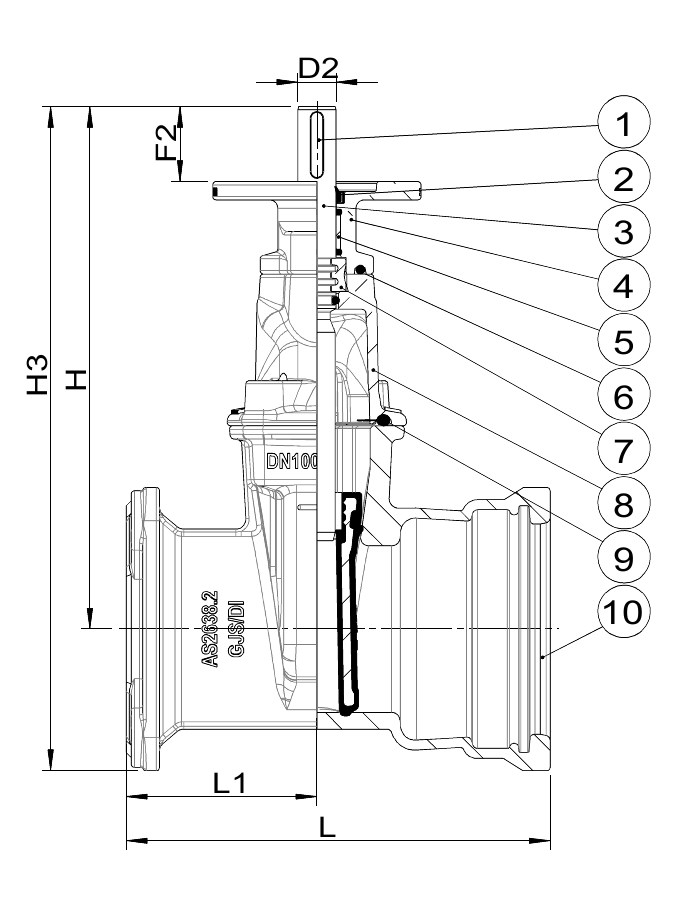

Reference nos. and dimensions:
| AVK ref. no. | DN mm |
DP Nom. O.D. mm |
D2 mm |
L mm |
L1 mm |
W mm |
H mm |
H3 mm |
F2 mm |
ISO Flange |
Theoretical weight / kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 570-080-72-1540121 | 80 | 94-97 | 23 | 227.5 | 101.5 | 174 | 295 | 368 | 45 | F10 | 14 |
| 570-080-72-1540122 | 80 | 88.7-89.1 | 23 | 227.5 | 101.5 | 174 | 295 | 368 | 45 | F10 | 14 |
| 570-100-72-1540121 | 100 | 120-123 | 23 | 254.5 | 114.5 | 195 | 314 | 399 | 45 | F10 | 17 |
| 570-100-72-1540122 | 100 | 114-114.5 | 23 | 254.5 | 114.5 | 195 | 314 | 399 | 45 | F10 | 17 |
| 570-150-72-1540121 | 150 | 175-178 | 23 | 285.5 | 133.5 | 275 | 401 | 535 | 45 | F10 | 33 |
| 570-150-72-1540122 | 150 | 160-160.5 | 23 | 285.5 | 133.5 | 275 | 401 | 535 | 45 | F10 | 33 |

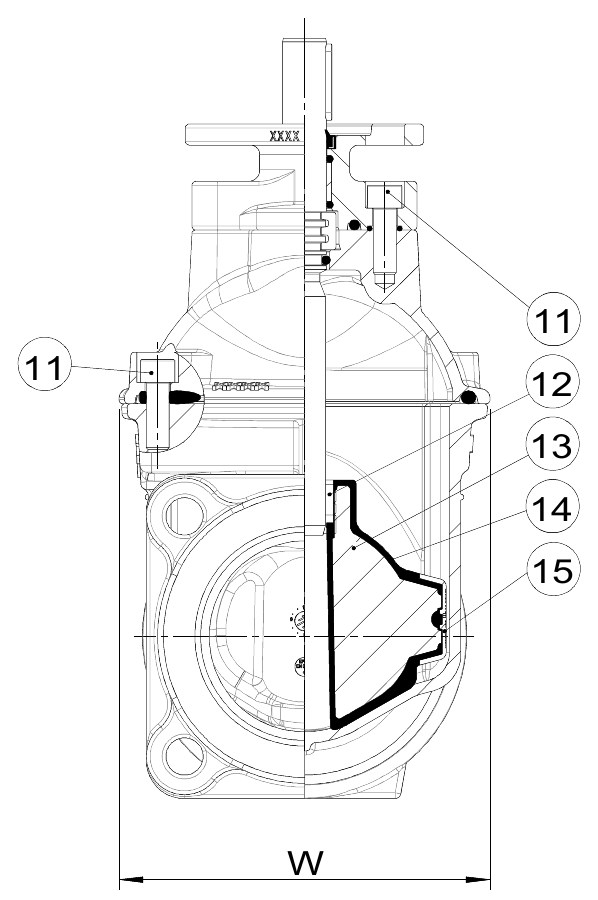

Components
| 1. | Key | Stainless steel A4-70 |
| 2. | Wiper ring | NBR rubber |
| 3. | Stem | Stainless steel 1.4057 (431) |
| 4. | ISO flange | Stainless steel 1.4408 |
| 5. | Bushing | PA 6.6 |
| 6. | O-ring | NBR rubber |
| 7. | Thrust collar | Brass, DZR CW602N |
| 8. | Bonnet | Ductile iron GJS-500-7 (GGG-50) |
| 9. | Bonnet gasket | EPDM rubber |
| 10. | Body | Ductile iron GJS-500-7 (GGG-50) |
| 11. | Bolt | Stainless steel A4-70 |
| 12. | Wedge nut | Brass, DZR CW602N |
| 13. | Wedge core | Ductile iron GJS-500-7 (GGG-50) |
| 14. | Wedge rubber | EPDM rubber |
| 15. | Wedge shoe | PA 6.6 |
Test/Approvals
- Production test according to AS/NZS 2638.2 Body: 1.5 x PN Seat: 1.1 x PN
- Seat: 1.1 x PN (in bar), Body: 2 x PN (in bar). Operation torque test.
- WaterMark approved to AS/NZS 2638.2
- StandardsMark approved to AS/NZS 2638.2
Standards
- Designed to: AS/NZS 2638.2
- Flange drilling to AS/NZS 4087 B5
- Socket end to: AS/NZS 2280
