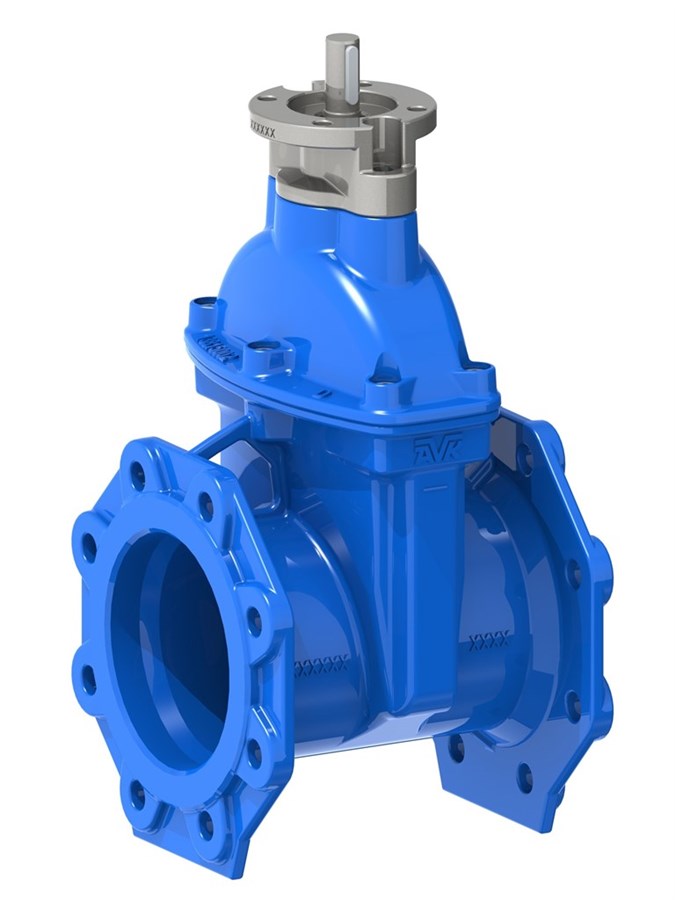

AVK GATE VALVE, RESILIENT SEATED, PN16
CC, ISO Mounting Flange, AS/NZS 4087 B5, DN80-DN400
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
Gate valve for drinking water and neutral liquids to max. 70°C. For AS/NZS 4020 compliance, max temp 40°C.
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability
| Variant 570/92-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN80 - DN400 |
| PN: | PN16 |
| Closing direction: | Clockwise Close |
Features
- Fixed integral wedge nut prevents vibration
- Polyamide wedge shoes protect the wedge during opening and closing reducing friction
- Stainless Steel Stem with wedge stop
- Ductile iron wedge, fully vulcanized with EPDM rubber
- Stainless steel gland flange, stem and bolts for increased corrosion resistance
- Gland flange removable under pressure for replacement of thrust bearings and seals
- Three independent stem seals; a metal reinforced wiper ring protects against external dust, o-rings protect the bearings with the major seal to flow being an EPDM o-ring
- Round bonnet gasket fixed in a recess to prevent blow-out under pressure
- Counterbored stainless steel bonnet bolts sealed with hot melt glue and integral o-rings of the bonnet gasket
- Full bore
- Epoxy coating to AS/NZS 4158
- Approved to AS/NZS 4020
Downloads
| AVK_Gate valves_animation_2022.mp4 |

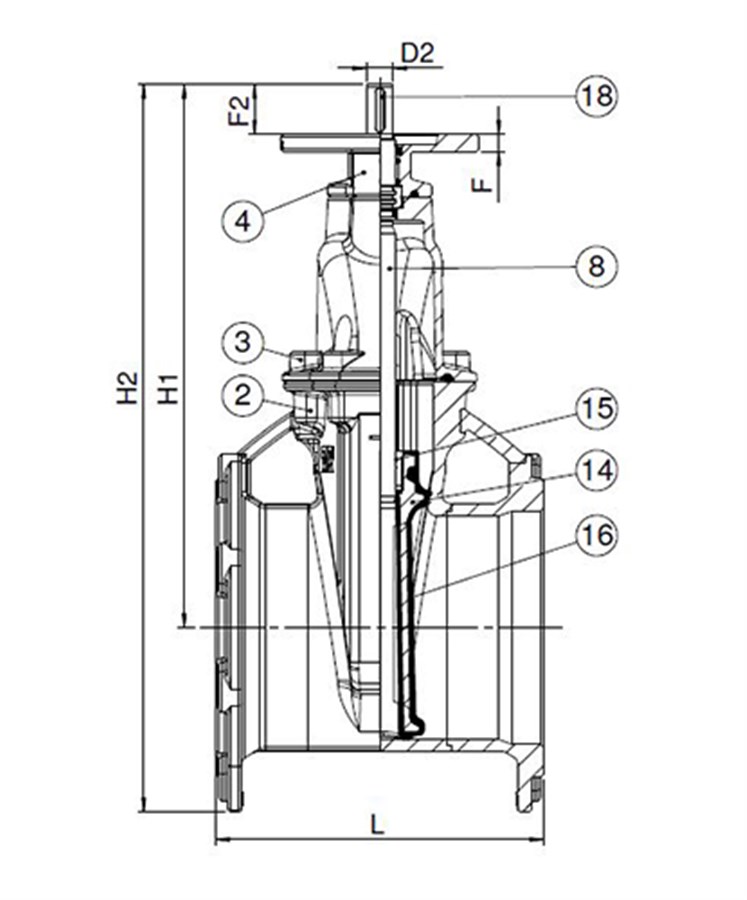

Reference nos. and dimensions:
| AVK ref. no. | DN mm |
L mm |
D mm |
H1 mm |
H2 mm |
D2 mm |
F2 mm |
ISO Flange |
Theoretical weight / kg |
|---|---|---|---|---|---|---|---|---|---|
| 570-080-92-0540120 | 80 | 203 | 190 | 295 | 368 | 23 | 45 | F10 | 13 |
| 570-100-92-0540120 | 100 | 229 | 218 | 314 | 397 | 23 | 45 | F10 | 16 |
| 570-150-92-0540120 | 150 | 267 | 285 | 401 | 543 | 23 | 45 | F10 | 33 |
| 570-200-92-0540120 | 200 | 292 | 332 | 487 | 651 | 23 | 45 | F10/F14 | 52 |
| 570-225-92-0540120 | 225 | 305 | 370 | 567 | 752 | 30 | 45 | F10/F14 | 88 |
| 570-250-92-0540120 | 250 | 330 | 405 | 579 | 782 | 30 | 45 | F10/F14 | 93.43 |
| 570-300-92-0540120 | 300 | 356 | 455 | 662 | 890 | 30 | 45 | F10/F14 | 126 |
| 570-375-92-0540120 | 375 | 381 | 550 | 825 | 1100 | 30 | 45 | F10/F14 | 227 |
| 570-400-92-0540120 | 400 | 406 | 580 | 837 | 1127 | 30 | 45 | F10/F14 | 237 |

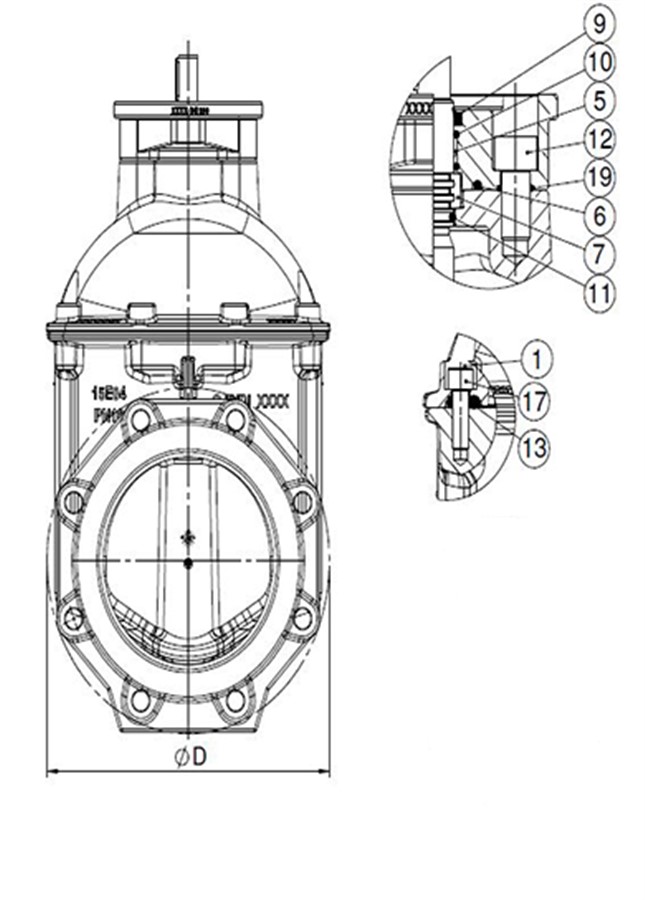

Components
| 1. | Hot melt | Hot melt glue |
| 2. | Body | Ductile iron GJS-500-7 (GGG-50) |
| 3. | Bonnet | Ductile iron GJS-500-7 (GGG-50) |
| 4. | ISO flange | Stainless steel 1.4408 |
| 5. | Bushing | PA 6.6 |
| 6. | O-ring | NBR rubber |
| 7. | Thrust collar | Brass, DZR CW602N |
| 8. | Stem | Stainless steel 1.4057 (431) |
| 9. | Wiper ring | NBR rubber |
| 10. | O-ring | NBR rubber |
| 11. | O-ring | NBR rubber |
| 12. | Bolt, socket head | Stainless steel A4-70 |
| 13. | Bonnet gasket | EPDM rubber |
| 14. | Wedge core | Ductile iron GJS-500-7 (GGG-50) |
| 15. | Wedge nut | Brass, DZR CW602N |
| 16. | Wedge rubber | EPDM rubber |
| 17. | Bolt, socket head | Stainless steel A4-70 |
| 18. | Key | Stainless steel A4-70 |
| 19. | O-ring | NBR rubber |
Test/Approvals
- Production test according to AS/NZS 2638.2 Body: 1.5 x PN Seat: 1.1 x PN
- WaterMark approved to AS/NZS 2638.2
- StandardsMark approved to AS/NZS 2638.2
Standards
- Designed to: AS/NZS 2638.2
- Face-to-face dimension according to AS2638.2
- Flange drilling to AS/NZS 4087 B5
