AVK ISOLATION VALVE, PN35
CC/ACC, EPDM Seal, Stem Cap
Contact
AVK Australia Civil
559A Grand Junction Road Wingfield SA 5013 Sales and Technical enquiry
AVK under ground isolation valve for fire protection services, water and neutral liquid applications
Screw-down type isolation valve with outlet flange to AS/NZS 4087 B6 DN80 or DN100.
| Variant 29/12-001 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile Iron |
| DN: | DN80 - DN100 |
| PN: | PN35 |
| Closing direction: | Clockwise Close |
Features
- Ductile Iron body for high strength and impact resistance
- EPDM encapsulated plug for longlife and sealing reliability
- O-Ring seals replaceable under pressure
- Thermally bonded polymeric coating for long life protection
- For fire protection services, water and neutral liquid applications
- Valve designed for use up to 70oC
- Where applicable; for AS/NZS 4020 compliance, max temp = 40oC
- Insulation essential for installations subject to temperatures of 0oC and lower
Note: Always observe pipe material recommended operating temperatures
Downloads
Datasheet
Installation, Operation & Maintenance

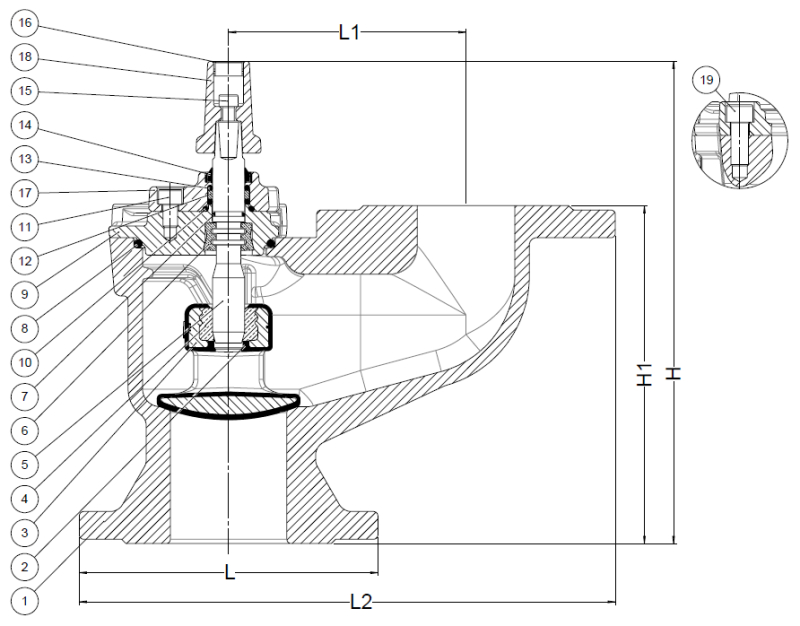

Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN mm |
DN/DN |
Operating Direction |
Text |
H mm |
H1 mm |
L mm |
L1 mm |
L2 mm |
Theoretical weight / kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 29-095-21-82111312 | 80 | 80/80 | CC | 331 | 232 | 205 | 163 | 368 | 19 | |
| 29-095-21-83111312 | 80 | 80/80 | ACC | 331 | 232 | 205 | 163 | 368 | 19 | |
| 29-105-12-82111312 | 100 | 100/100 | CC | 331 | 232 | 230 | 163 | 393 | 21.6 | |
| 29-105-12-83111312 | 100 | 100/100 | ACC | 331 | 232 | 230 | 163 | 393 | 21.6 |
2D/3D drawings
Enquiry
Scroll for more info
Components
| 1. | Body | Ductile iron GJS-500-7 |
| 2. | Stopper | Ductile iron GJS-500-7 |
| 3. | Stopper Assembly | EPDM rubber |
| 4. | Stem nut | Brass, DZR CW602N (CZ132) |
| 5. | Stem | Stainless steel 431 |
| 6. | Thrust collar | Brass, DZR CW602N (CZ132) |
| 7. | O-ring | NBR rubber |
| 8. | O-ring | NBR rubber |
| 9. | Bonnet | Ductile iron GJS-500-7 |
| 10. | O-ring | NBR rubber |
| 11. | Bolt | Stainless steel A4 |
| 12. | Bush | PA |
| 13. | O-ring | NBR rubber |
| 14. | Wiper ring | NBR rubber |
| 15. | Bolt | Stainless steel A4 |
| 16. | Insert | Plastic |
| 17. | Stem Cap | Ductile iron GJS-500-7 |
| 18. | Gland flange | Stainless steel |
| 19. | Bolt | Stainless steel A4 |
Standards
- Flange drilling: AS/NZS 4087 B6
-
AS/NZS 4020 compliance
